Introducing the KingsBottle Modular Beer Font Tower kit, a premium choice for achieving a professional and stylish finish at any bar or beverage sales location.
These fonts are perfectly suited for mounting on our Super Deluxe series of high-quality under-bar fridges. Crafted from durable 304 Stainless Steel, each KingsBottle Modular Font is designed to be easily assembled using 2-inch tri-clover fittings.
Our Modular Font Kits are specifically engineered to be used with our reliable 3/4-inch Kinglok fittings, allowing users to disconnect their taps quickly and effortlessly for maintenance or cleaning purposes.
For under-bench fridge installations, we recommend complementing your setup with our convenient Under-Bench Telescopic Font Adaptor.
Available in Single, Double, Triple, Quadruple, Quintuple, and Six tap varieties, they offer versatility to suit your needs.

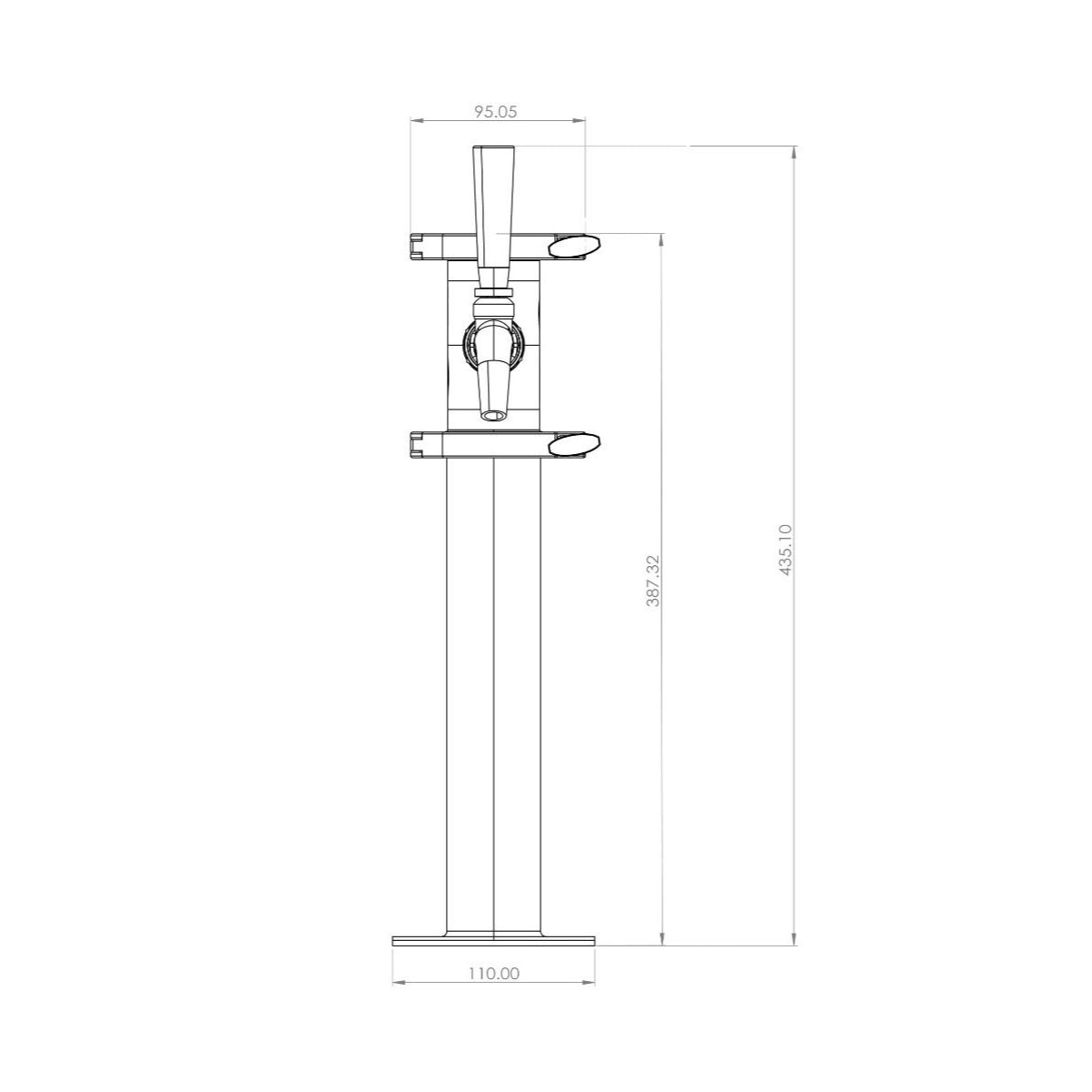

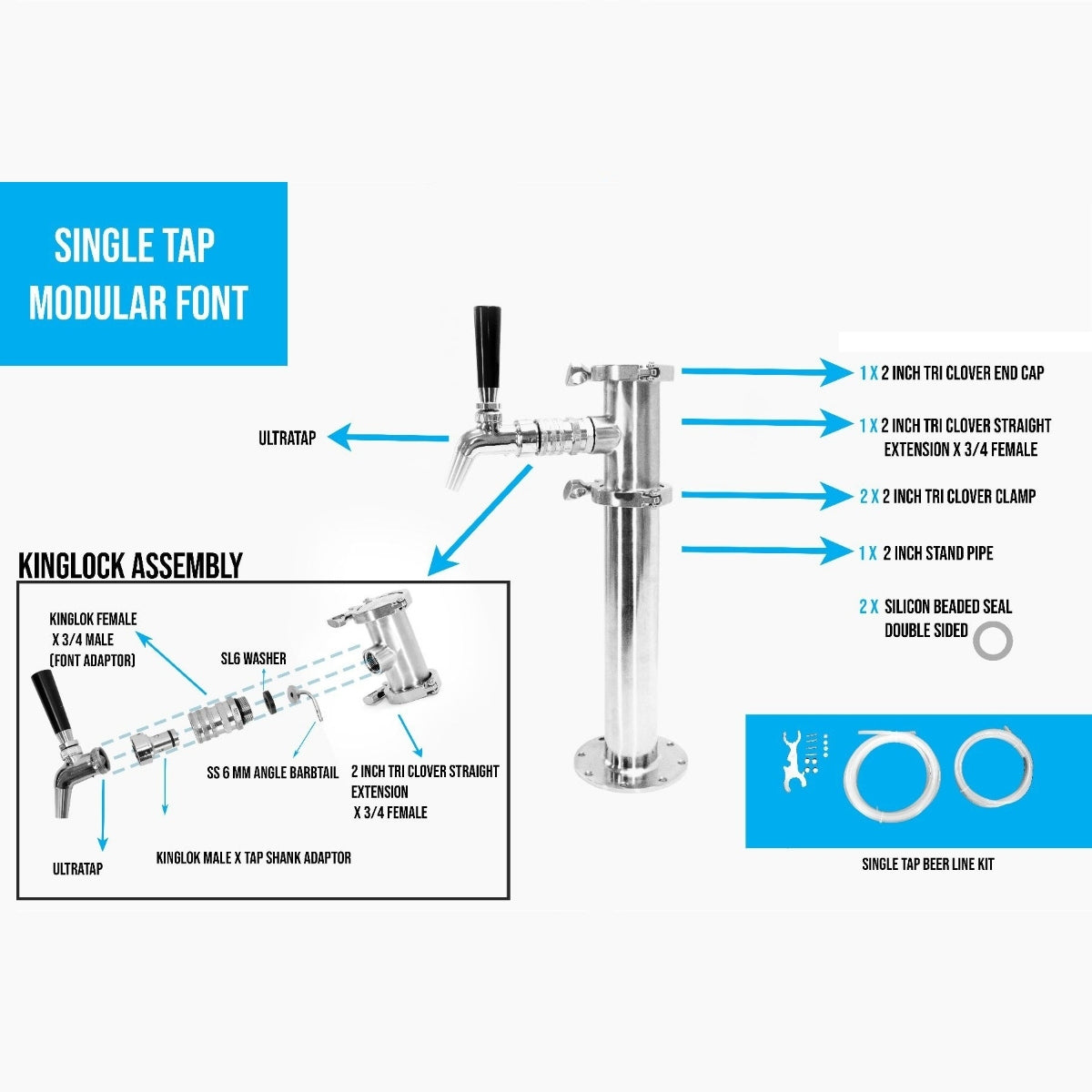

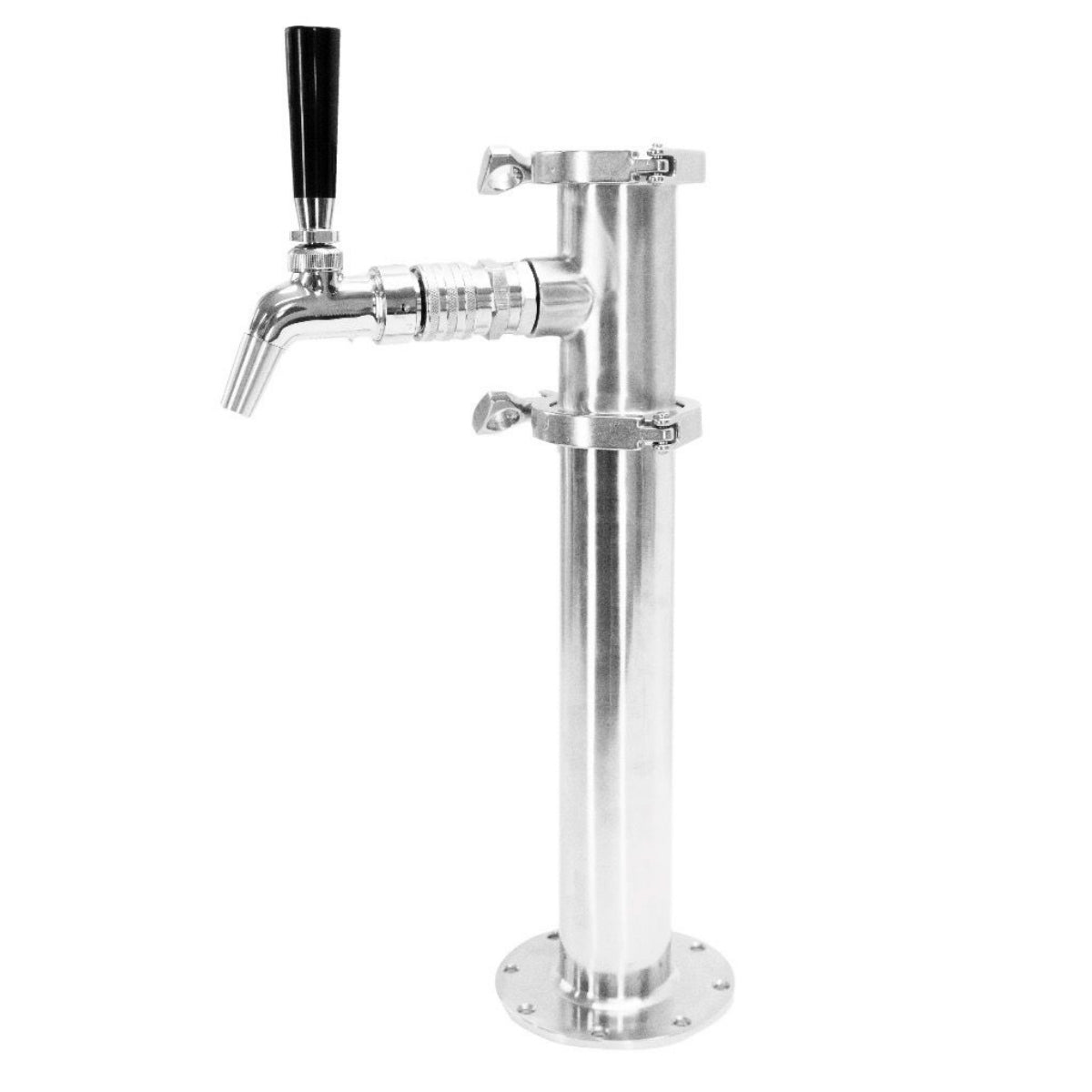

Specifications:
- Material: 304 Stainless Steel
- Height: 380mm to top of font (excluding tap handles)
- Width: 100mm
- 1x Ultratap
- 1x Modular Font 2-inch Stand Pipe
- 1x 2-inch Tri Clover Straight Extension x 3/4 Female
- 2x 2-inch Tri Clover Silicone O-ring Beaded Seal Double Sided
- 1x 2-inch Tri Clover End Cap (no hole)
- 1x KingLok Female x 3/4 Male (Font Adaptor)
- 2x 2-inch Tri Clover Clamps
- 1x SL6 washer
- 1x 6mm Angle barbtail Stainless Steel
- 1x Single Beer Line Set (including 4m of 5mm evafresh beer line)
- 1x Kinglok Male Tap Shank Adaptor
- 1x Premium Liquid Disconnect Black
- 1x Premium Gas Disconnect Grey

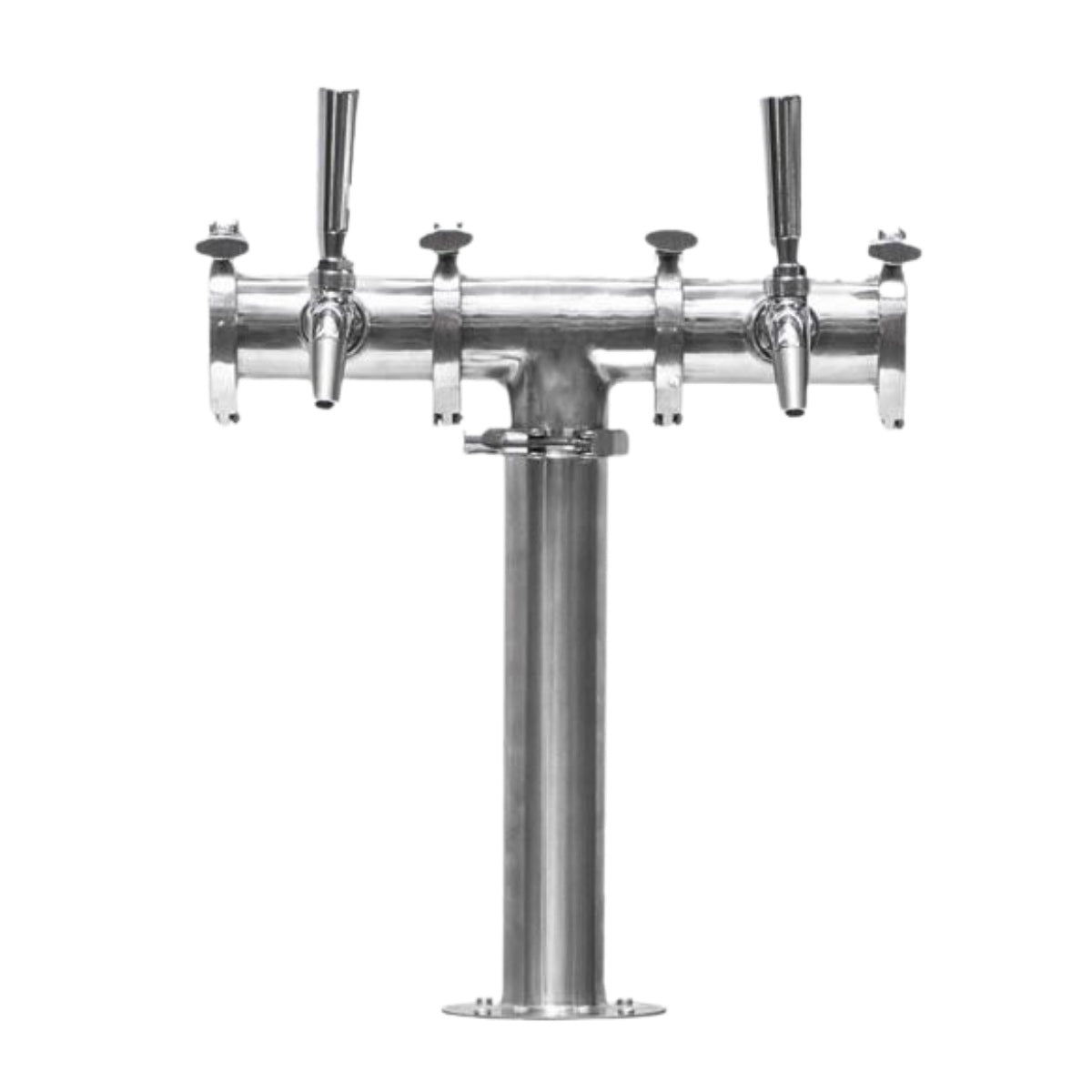

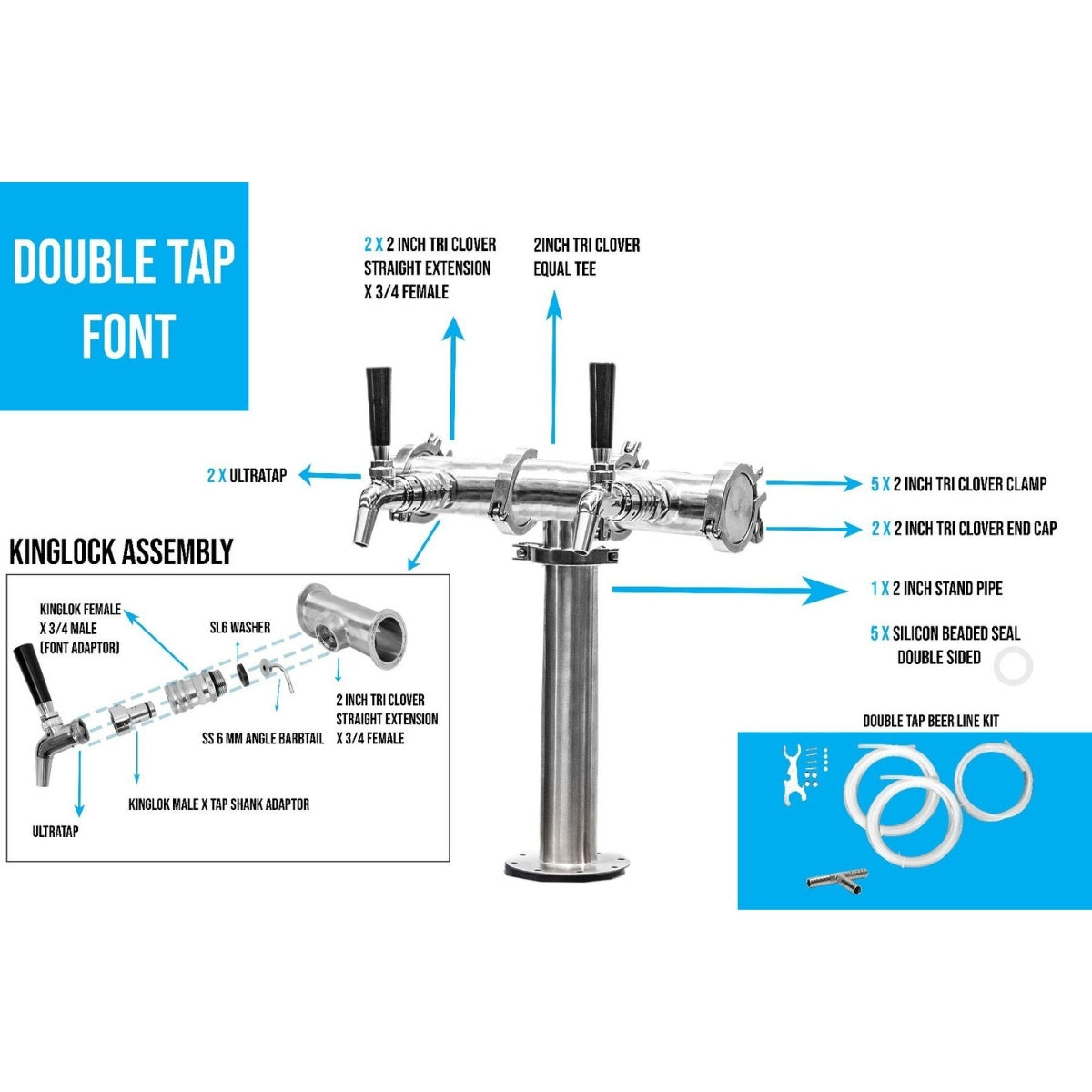

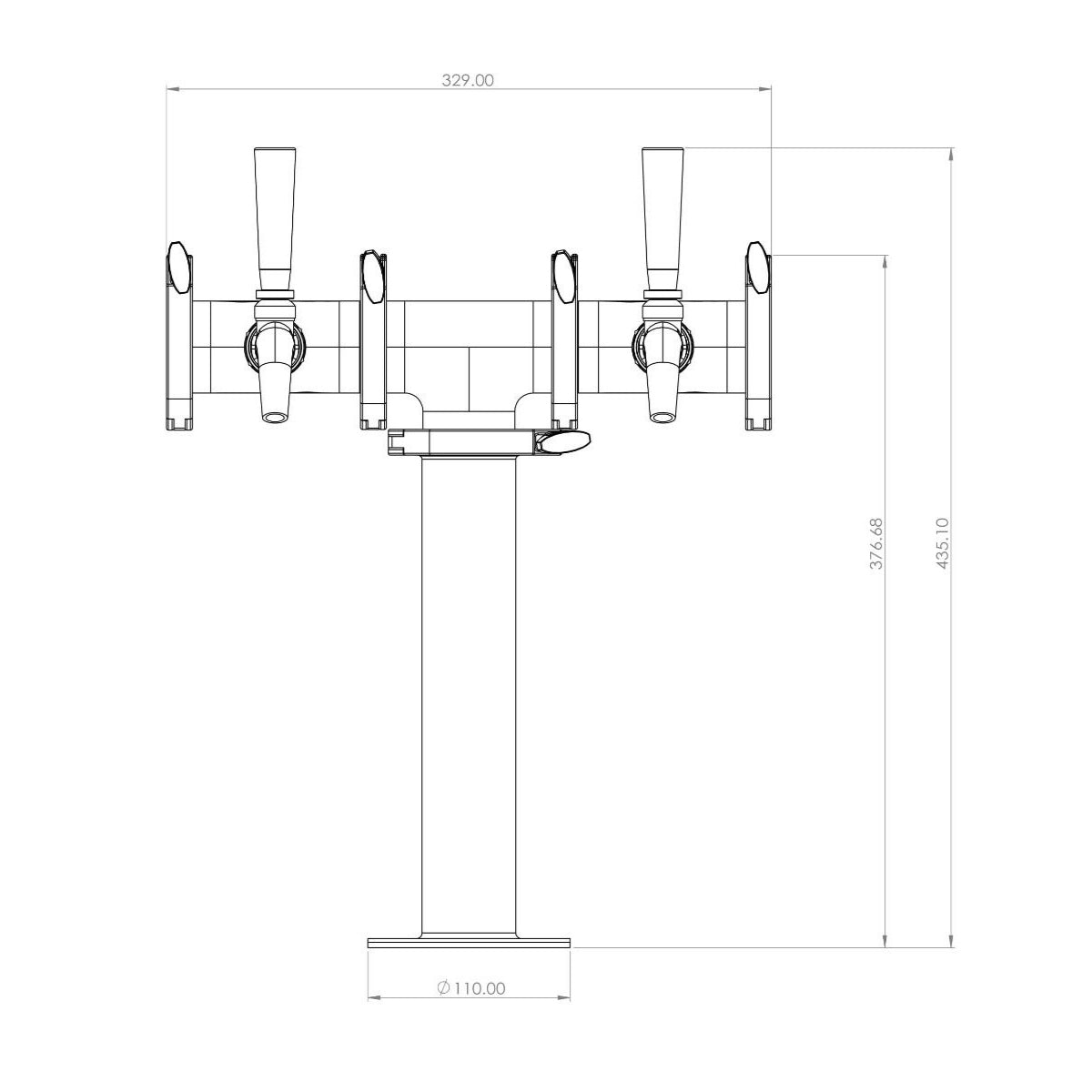

Specifications:
- Material: 304 Stainless Steel
- Height: 360mm to top of font (excluding tap handles)
- Width: 330mm
- 2x Ultratap (part 8019)
- 1x Modular Font 2-inch Stand Pipe (part 8862)
- 5x 2-inch Tri Clover Silicone o-ring Beaded Seal Double Sided (part 4956)
- 2x 2-inch Tri Clover End Cap (no hole) (part 8923)
- 1x 2-inch Tri Clover Equal Tee (9357)
- 2x 2-inch Tri Clover Straight Extension - 3/4 Female (8909)
- 2x KingLok Female x 3/4 Male (Font Adaptor) (8381)
- 5x 2-inch Tri Clover Clamps (6493)
- 2x SL6 washer (SL6)
- 2x 6mm Angle barbtail Stainless Steel (7384)
- 2x Kinglok Male x Tap Shank Adaptor (8398)
- 1x Double Beer Line Set (RET8326)
- 2x Premium Liquid Disconnect Black
- 2x Premium Gas Disconnect Grey

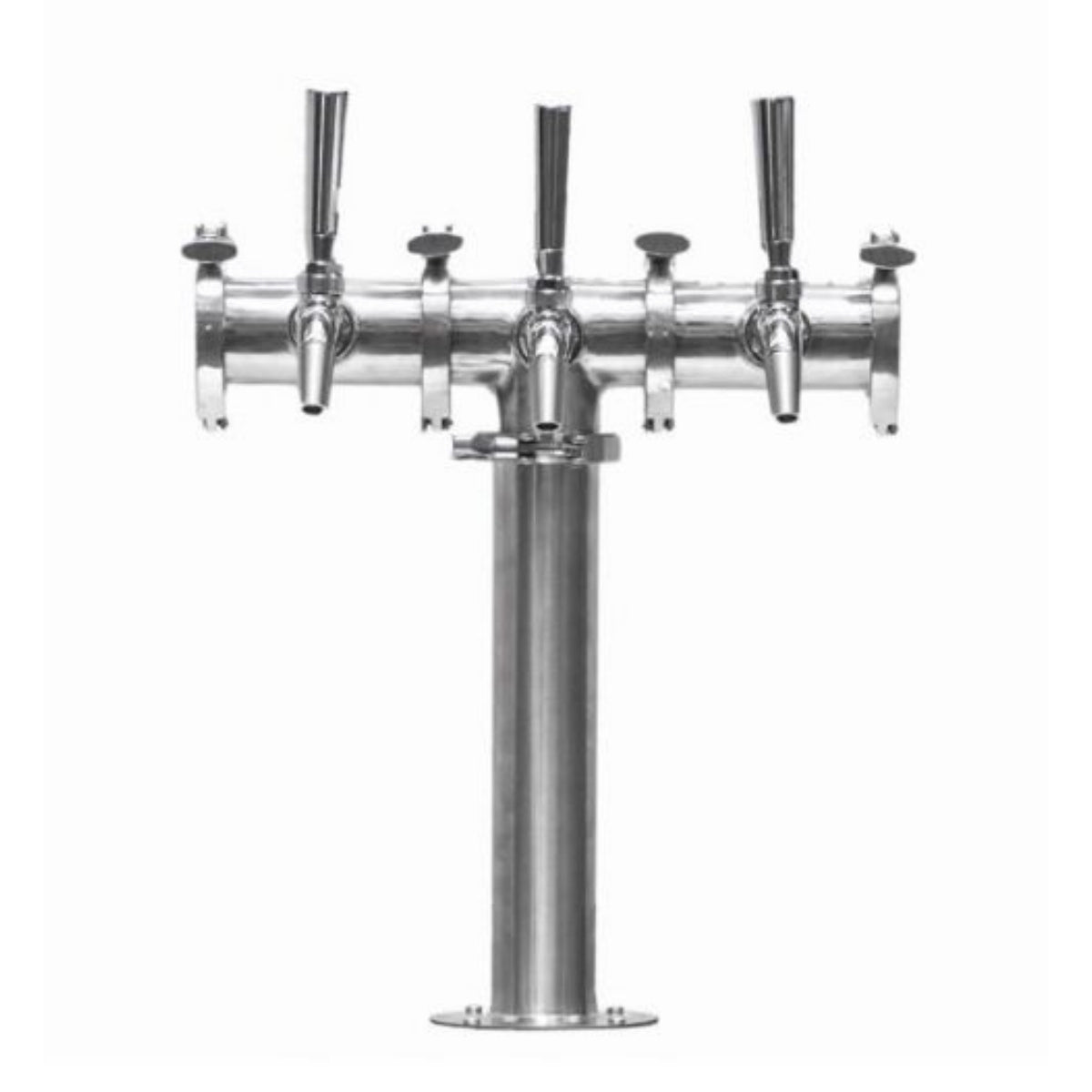

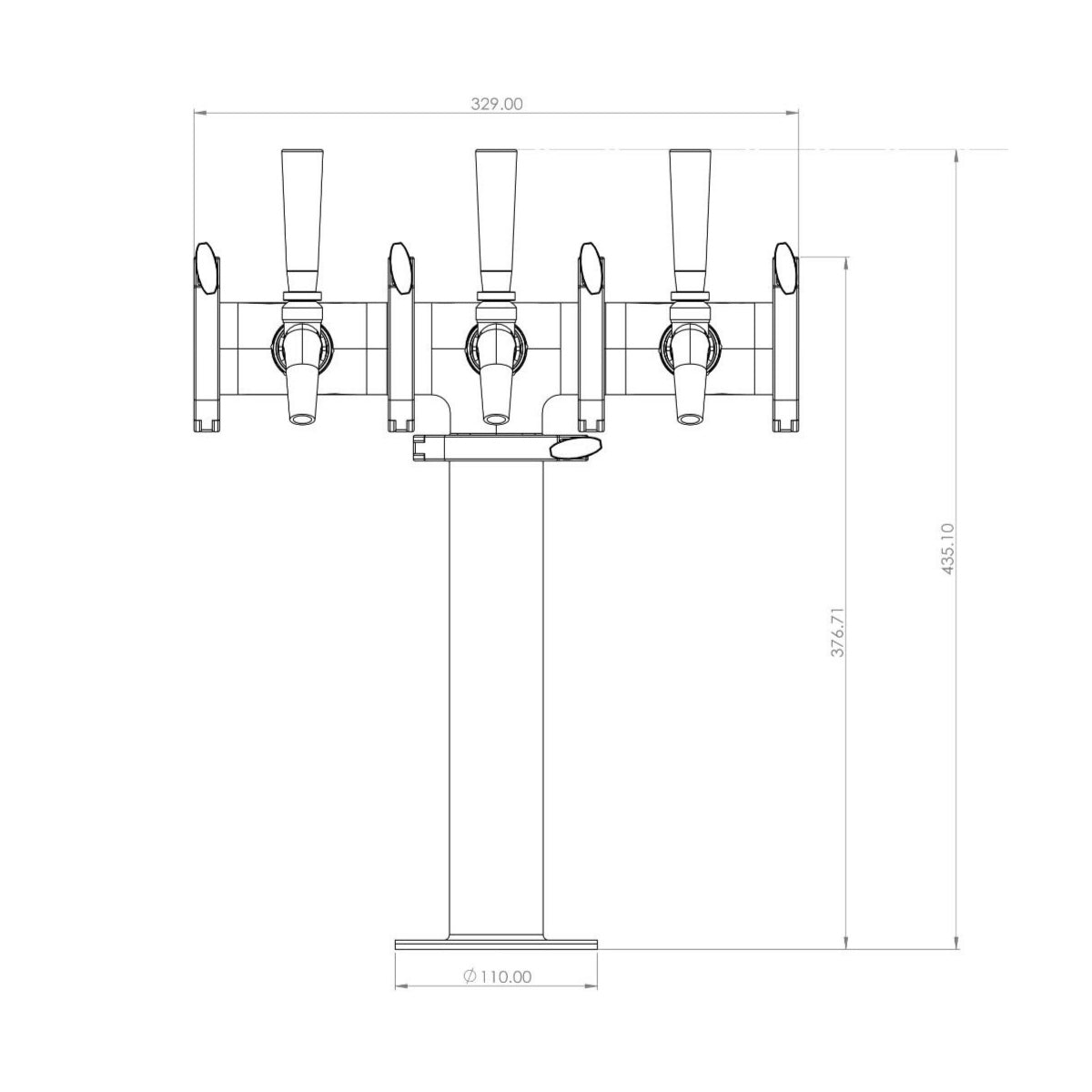

Specifications:
- Material: 304 Stainless Steel
- Height: 360mm to top of font (excluding tap handles)
- Width: 330mm

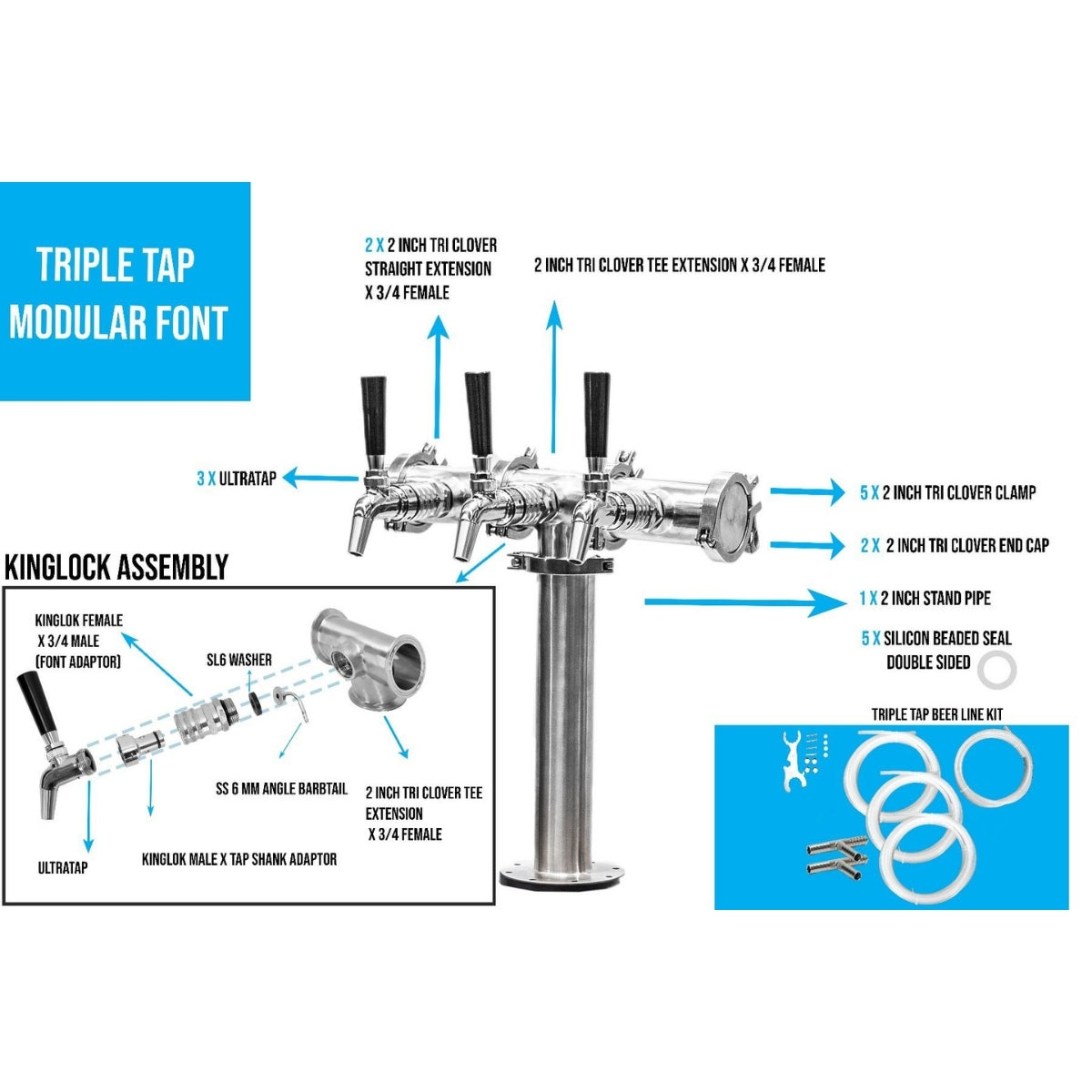

Triple Tap Modular Font Kit comprises:
- 3x Ultratap
- 1x Modular Font 2 inch Stand Pipe
- 5x 2 inch Tri Clover Silicone o-ring Beaded Seal Double Sided
- 2x 2 inch Tri Clover End Cap (no hole)
- 1x 2 inch Tri Clover Tee Extension x 3/4 Female
- 2x 2 inch Tri Clover Straight Extension - 3/4 Female
- 3x KingLok Female x 3/4 Male (Font Adaptor)
- 5x 2 inch Tri Clover Clamps
- 3x SL6 washer
- 3x 6mm Angle barbtail Stainless Steel
- 3x Kinglok Male x Tap Shank Adaptor
- 1x Triple Beer Line Set
- 3x Premium Liquid Disconnect Black
- 3x Premium Gas Disconnect Grey

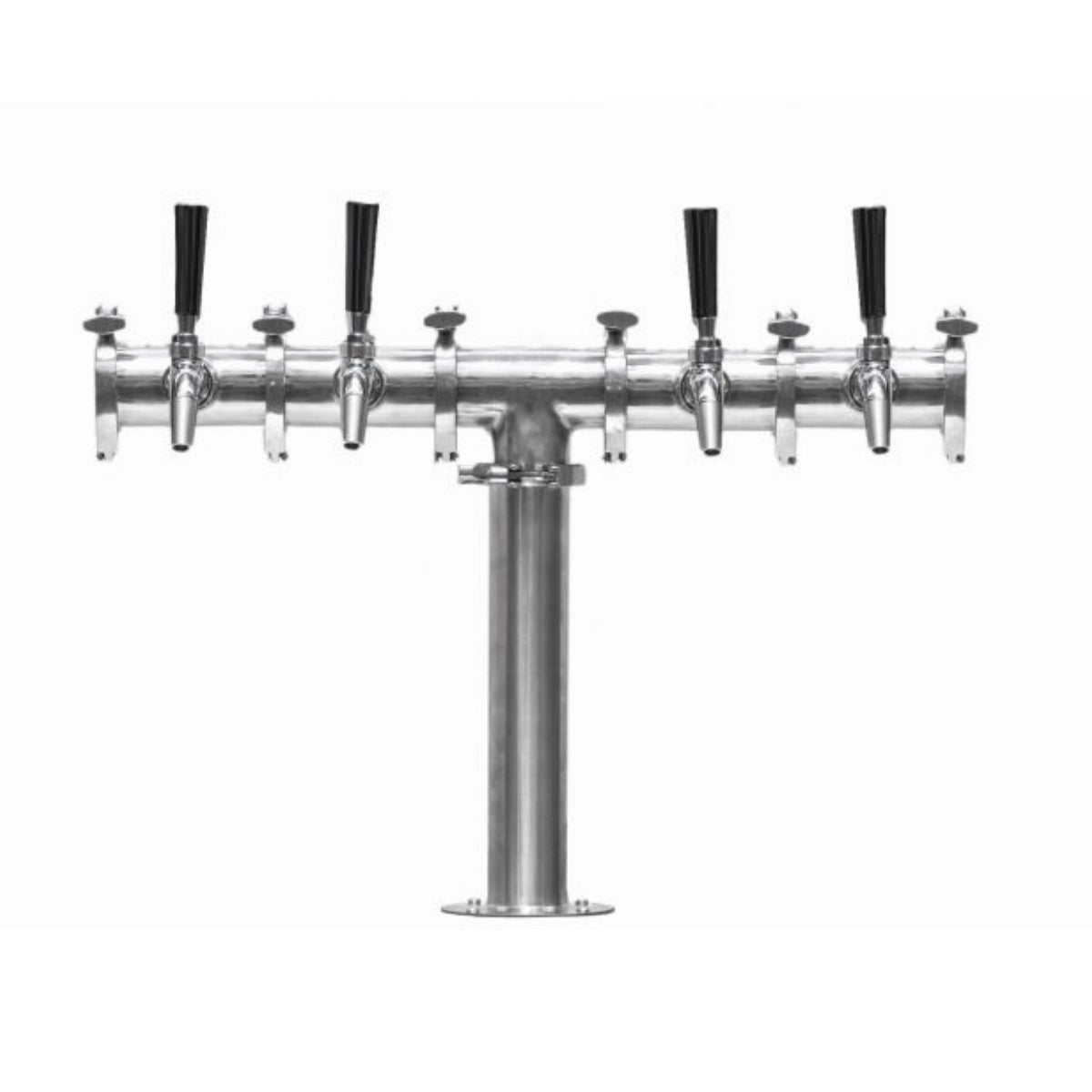

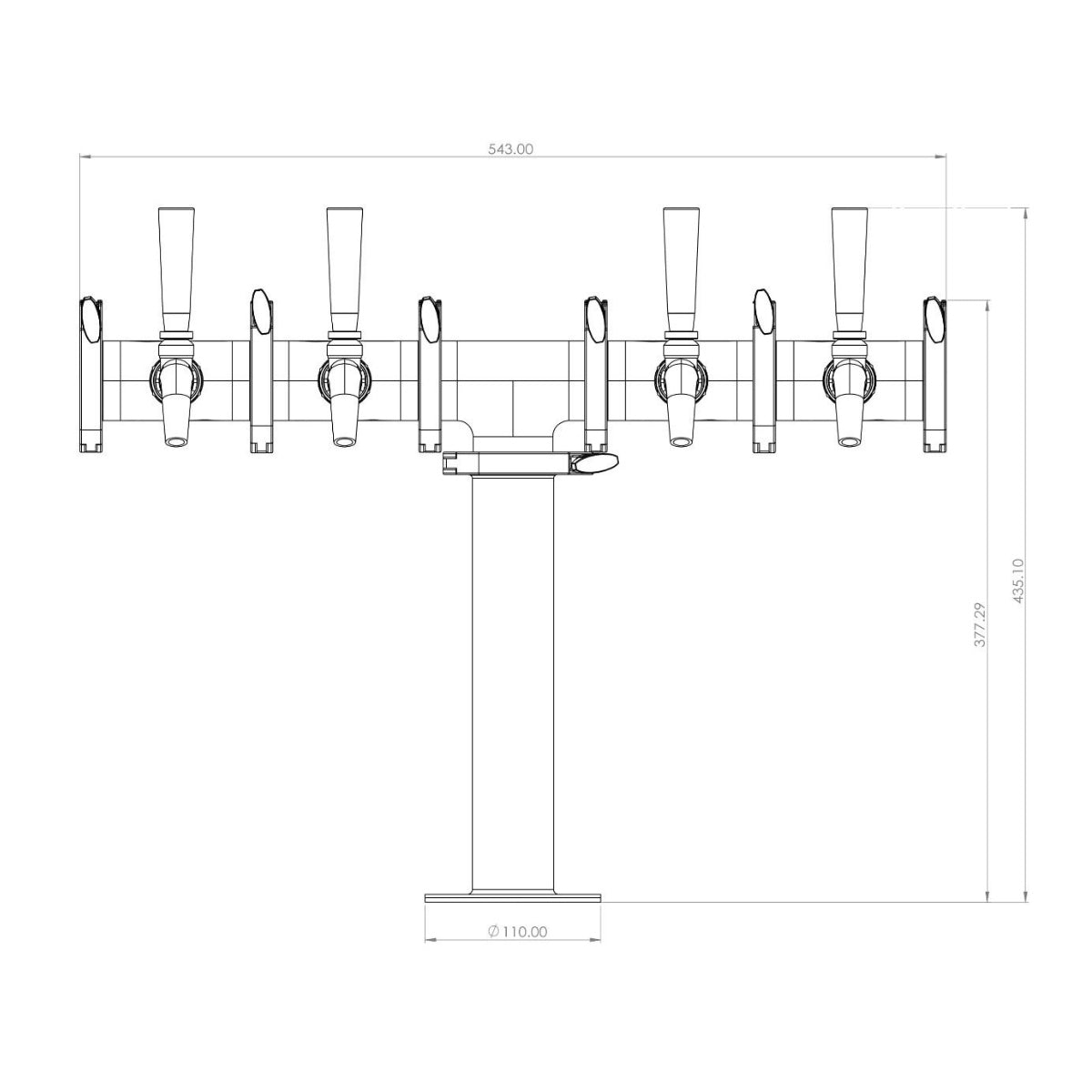

Specifications:
- Material: 304 Stainless Steel
- Height : 360mm to top of font (excluding tap handles)
- Width: 570mm
- 4x Ultratap
- 1x Modular Font 2 inch Stand Pipe
- 7x 2 inch Tri Clover Silicone o-ring Beaded Seal Double Sided
- 2x 2 inch Tri Clover End Cap (no hole)
- 1x 2 inch Tri Clover Equal Tee
- 4x 2 inch Tri Clover Straight Extension - 3/4 Female
- 4x KingLok Female x 3/4 Male (Font Adaptor)
- 7x 2 inch Tri Clover Clamps
- 4x SL6 washer
- 4x 6mm Angle barbtail Stainless Steel
- 4x Kinglok Male x Tap Shank Adaptor
- 2x Double Beer Line Set
- 4x Premium Liquid Disconnect Black
- 4x Premium Gas Disconnect Grey

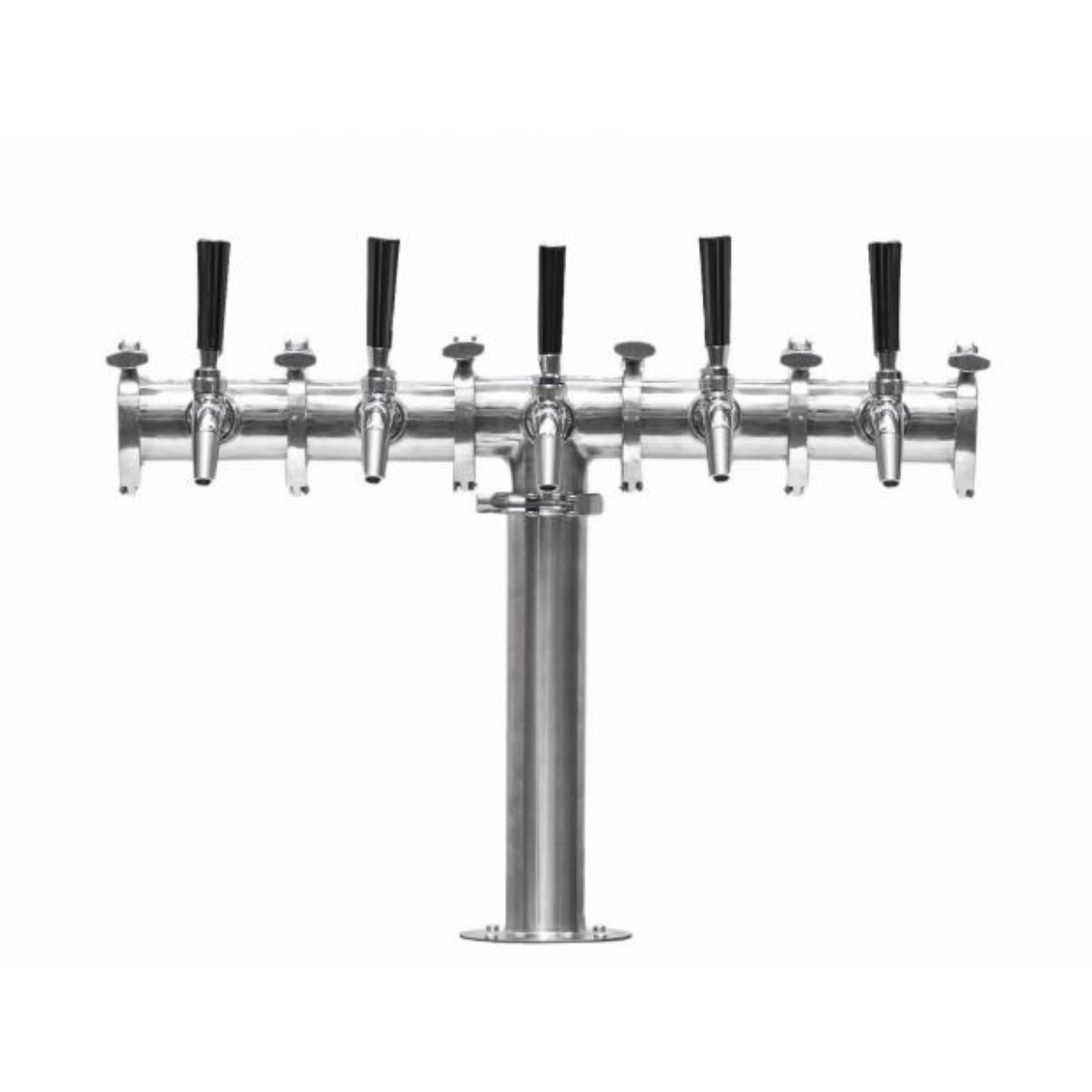

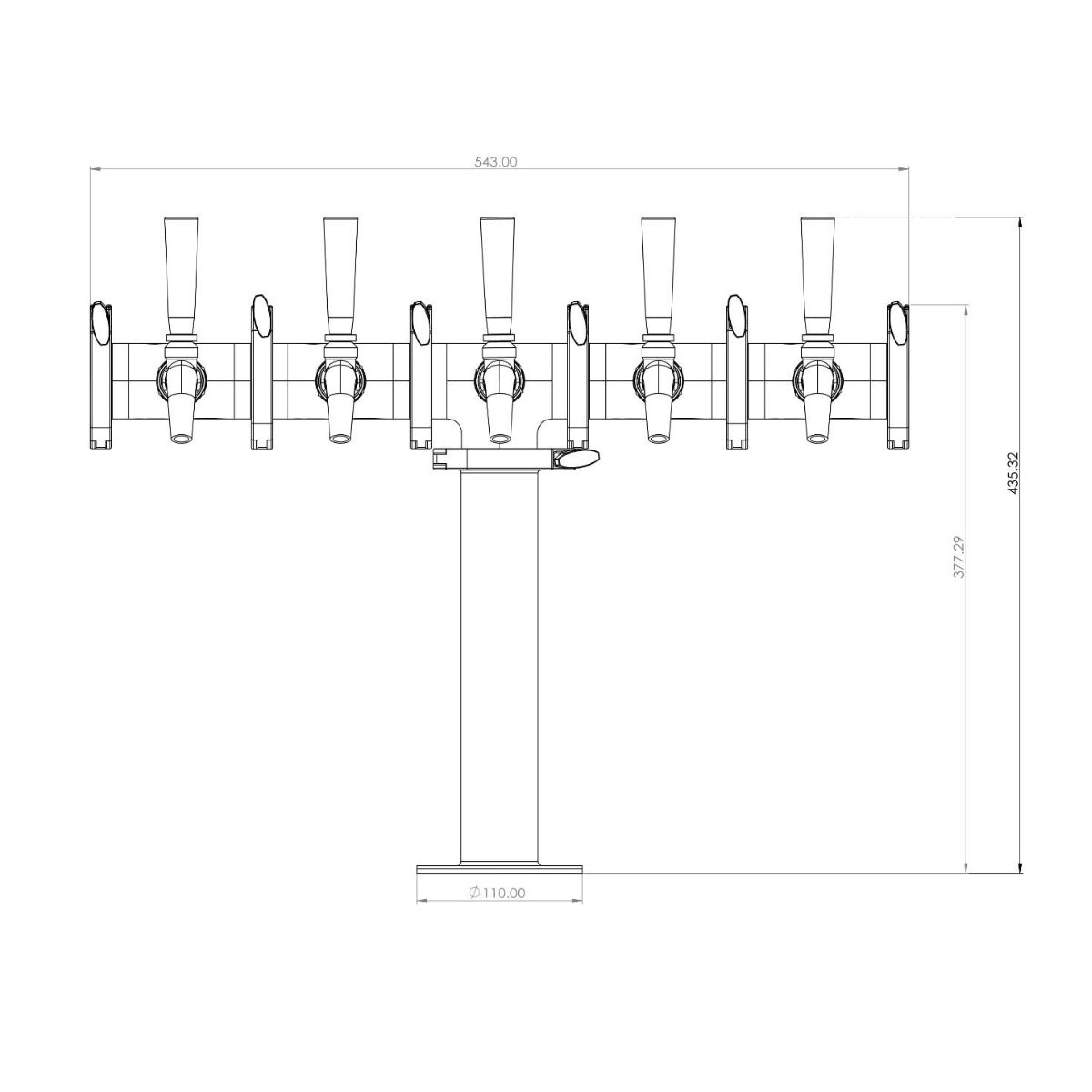

Specifications:
- Material: 304 Stainless Steel
- Height : 360mm to top of font (excluding tap handles)
- Width: 570mm
- 5x Ultratap
- 1x Modular Font 2 inch Stand Pipe
- 7x 2 inch Tri Clover Silicone o-ring Beaded Seal Double Sided
- 2x 2 inch Tri Clover End Cap (no hole)
- 1x 2 inch Tri Clover Equal Tee
- 4x 2 inch Tri Clover Straight Extension - 3/4 Female
- 5x KingLok Female x 3/4 Male (Font Adaptor)
- 7x 2 inch Tri Clover Clamps
- 5x SL6 washer
- 5x 6mm Angle barbtail Stainless Steel
- 5x Kinglok Male x Tap Shank Adaptor
- 1x Triple Beer Line Set
- 1x Double Beer Line Set
- 5x Premium Liquid Disconnect Black
- 5x Premium Gas Disconnect Grey

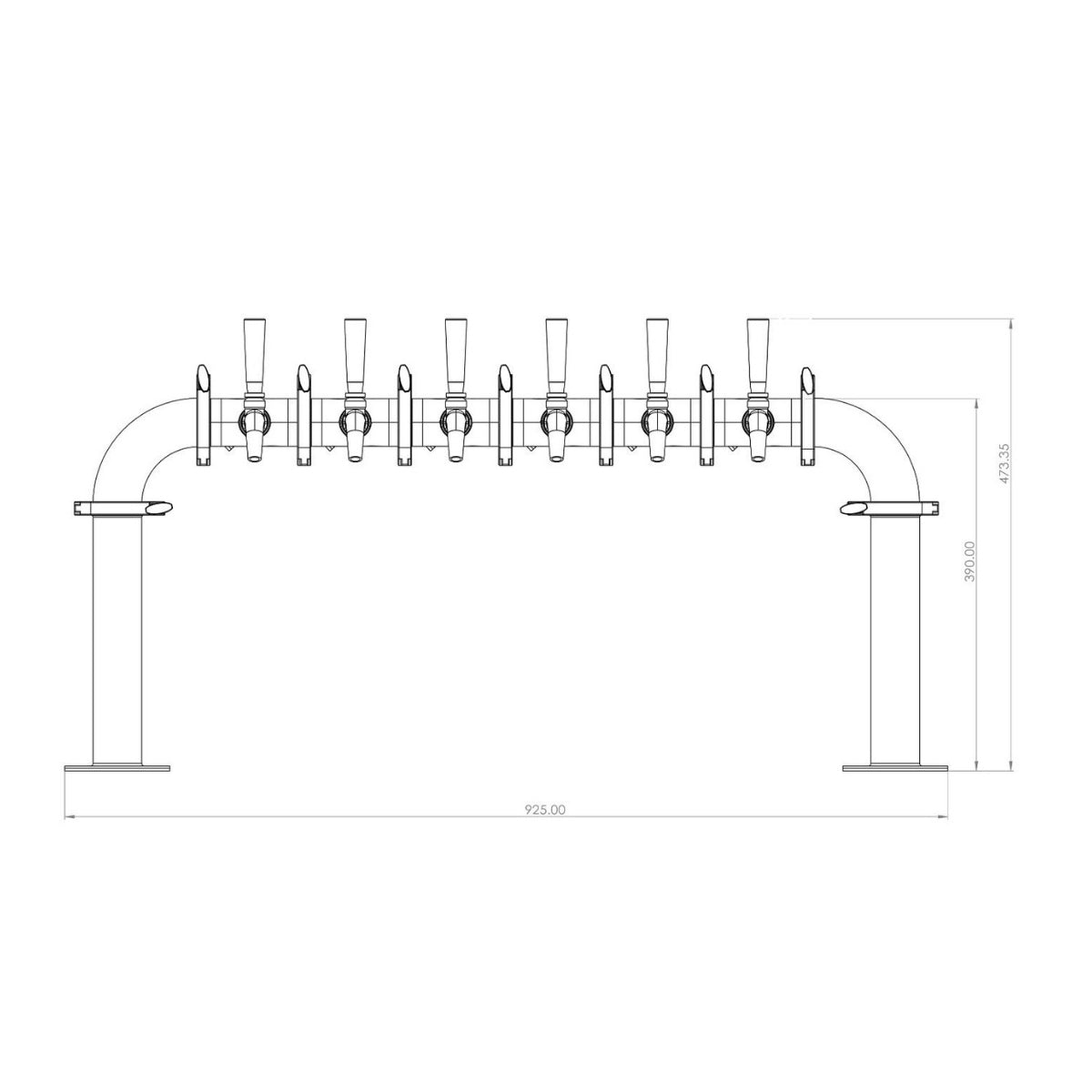

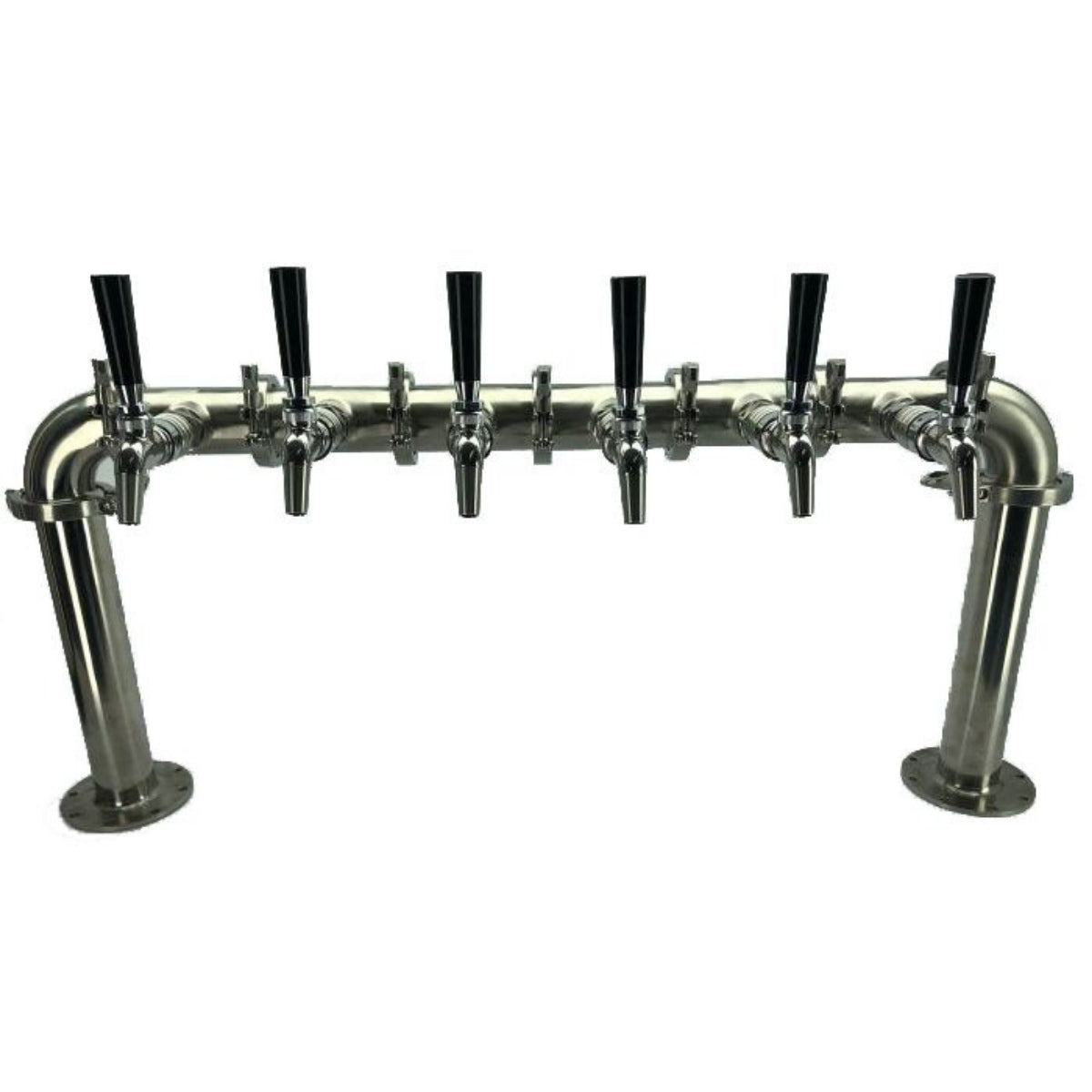

Specifications:
- Material: 304 Stainless Steel
- Height : 390mm top of the font, 475mm top of tap handles
- Width: 925mm to the outside edge of each stand pipe base.
- 2x 2-inch Tri-Clover Stand Pipes
- 2x 2-inch 90-degree Elbow Bends
- 6x 2-inch Tri-Clover Extensions x 3/4 inch
- 6x Kinglock x 3/4 inch male fittings
- 6x Kinglock Tap Adaptors
- 6x SL6 Washers
- 6x Elbow Barb 6mm
- 9x 2-inch Tri-Clover Double Beaded Silicone Seals
- 9x 2-inch Tri-Clover Clamps
- 6x Ultratap Faucets
- 2x Triple Line Sets
- 6x Premium Liquid Disconnect Black
- 6x Premium Gas Disconnect Grey

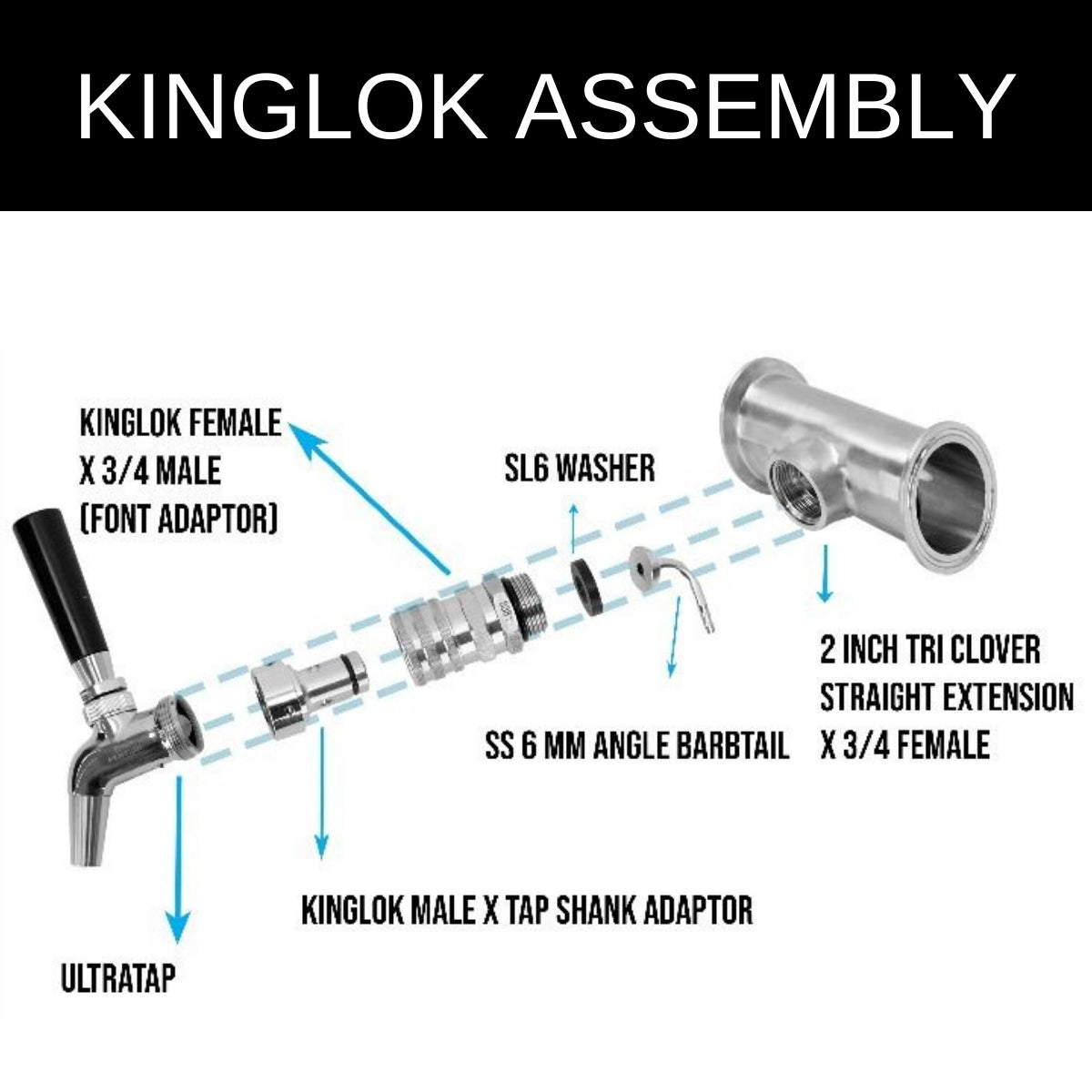

NOTE: The 3/4-inch male threading on the KingLok fitting is equipped with a black silicone o-ring at the top of the threads. It is important to note that this o-ring does not need to seal against the top of the 3/4-inch female modular font port. Typically, the o-ring will sit slightly above the surface due to the Kinglok fitting compressing against the SL6 washer. This is a normal occurrence. If you find the visual appearance of the o-ring displeasing, you have the option to remove it from the Kinglok fitting.
