2-Door Full Stainless Under Bench Beverage Fridge Heating Glass
SIZE: 900W x 545D x 860H mm
Streamline your bar service with the KingsBottle 2 Door Full Stainless Under Bench Beverage Fridge—a dependable choice for Australia’s busy bars and pubs. Designed to fit under commercial benches, this fridge is ideal for bustling venues in Melbourne or the Outback, offering a 120 bottles (350ml) or 198 cans (330ml) capacity—perfect for keeping up with demand during peak hours or lively nights.
Built with a full stainless steel exterior and interior, this fridge is tough enough to handle commercial use while maintaining a sleek, professional look. The heated glass doors prevent fogging in humid conditions, ensuring a clear view of your drinks, while the premium Italian CAREL controller delivers precise temperature control for consistent performance. Fully adjustable chrome steel shelves allow for easy organization, and fan-circulated cooling ensures every can stays chilled from top to bottom. Whether in a lively pub or a chic cocktail bar, this under-bench fridge offers reliable cooling with a modern stainless finish—your drinks are always ready to serve.
Specifications
General Information
- Dimensions: 900W x 545D x 860H mm

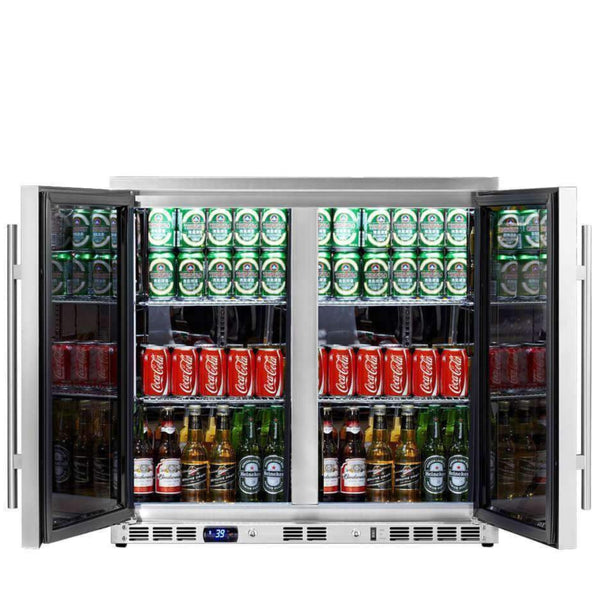

- Capacity: 120 bottles (350 ml) or 198 Cans (330 ml)
- Net Weight: 75 kg
- Door: 2 stainless steel doors with heated glass
Key Features
Compressor: Embraco
Glass: Heated Glass
Cooling System: Fan-circulated for uniform temperature
Shelves: Chromed shelves, fully adjustable to meet storage needs.
Temperature Range: 1-8°C
Control: Carel Controller, Digital Thermostatic Control
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 1.23kw.h/24h (Heated Glass OFF) 2.0 kw.h/24h (Heated Glass ON)

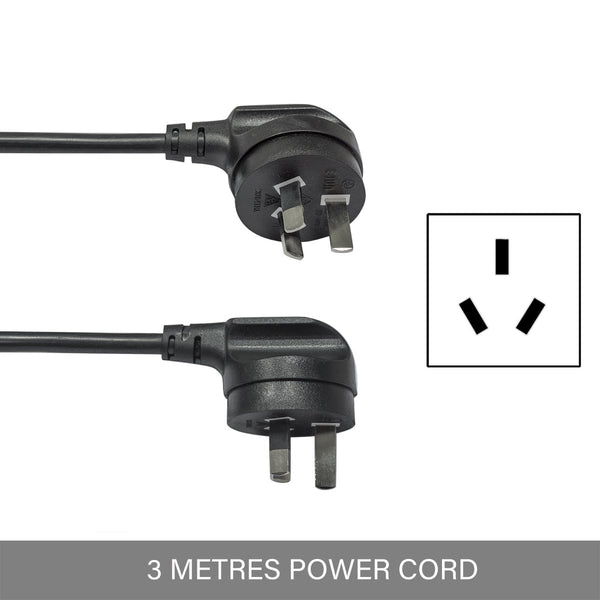

Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KB55/KB56/KB328M

Quiet Compressor
Packs a top-quality compressor that runs super quiet and vibration-free, keeping your drinks chilled without any fuss.

Fan Circulated Air-Cooling System
Keeps the cabinet temp even from top to bottom;
Manages humidity to look after your stash.

Activated Carbon Filter
Grabs airborne nasties;
Keeps the air inside fresh and pong-free.

Digital Temperature Control
Features a premium Carel controller from Italy, giving you spot-on temp control to keep your drinks just right.

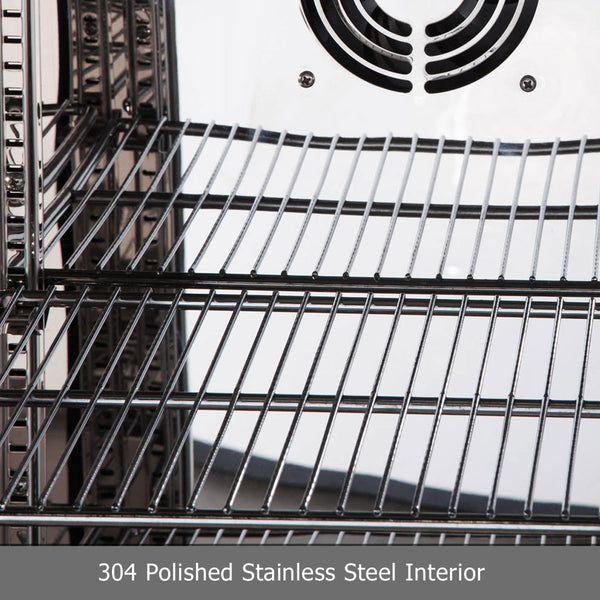

Fully Adjustable Chromed Metal Shelves
Shiny chromed shelves you can tweak to suit your storage needs.

Heated Glass Door
Toughened safety glass with a conductive film stops fogging with adjustable low-E heat settings (Weak/Medium/Strong), kicking in with the compressor.
Notice: Glass temp (27-34°C) needs to stay clear of rain and outdoor exposure.

Stainless Steel Cabinet and Door Frame
Built tough with commercial-grade 304 stainless steel inside and out.
Dimensions & Diagrams

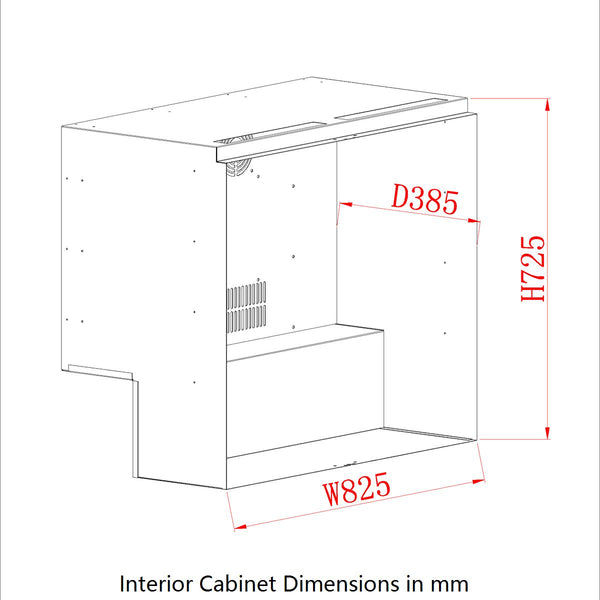

Technical Dimensions


Installation Diagrams

User Manual For KB55 | KB56 | KB328
