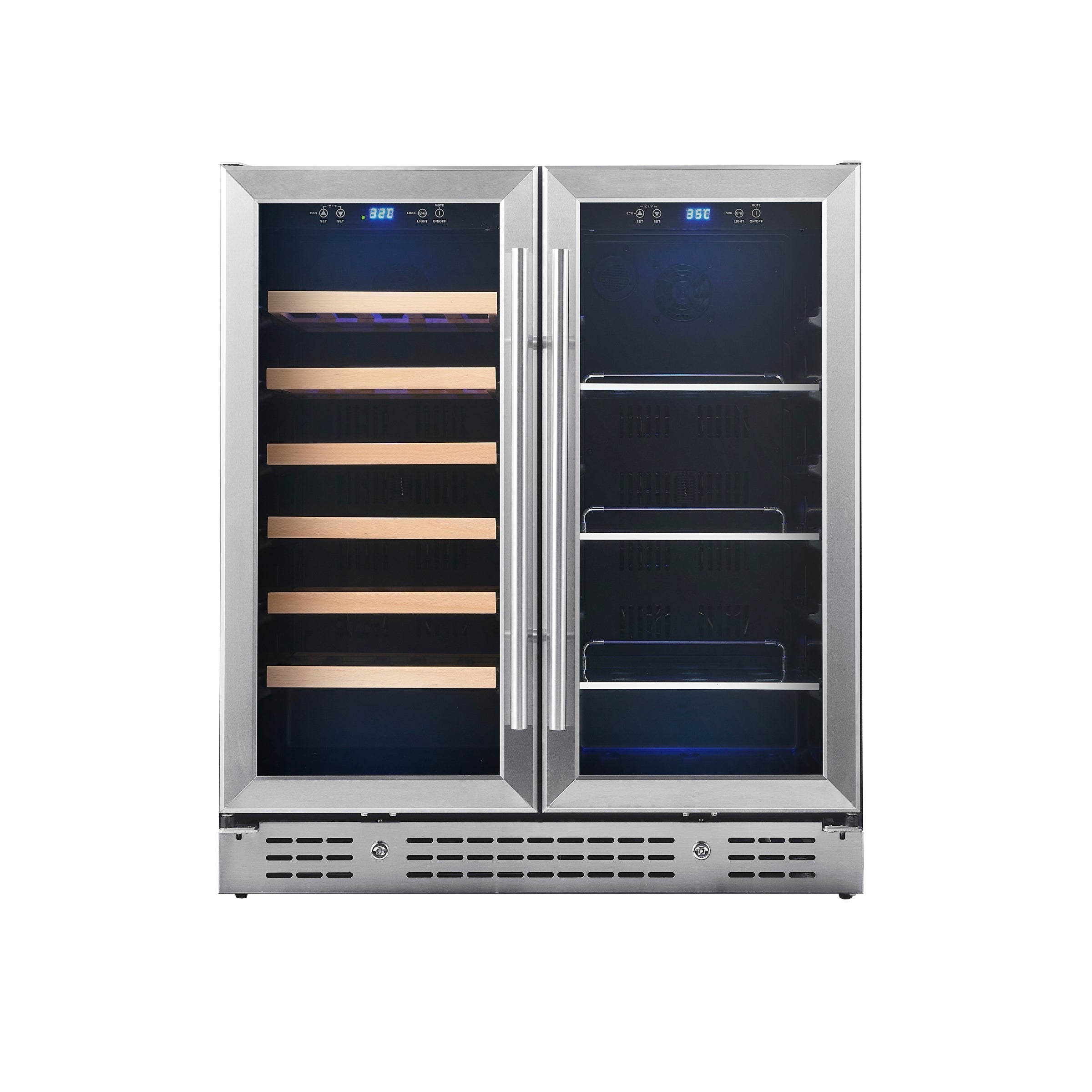

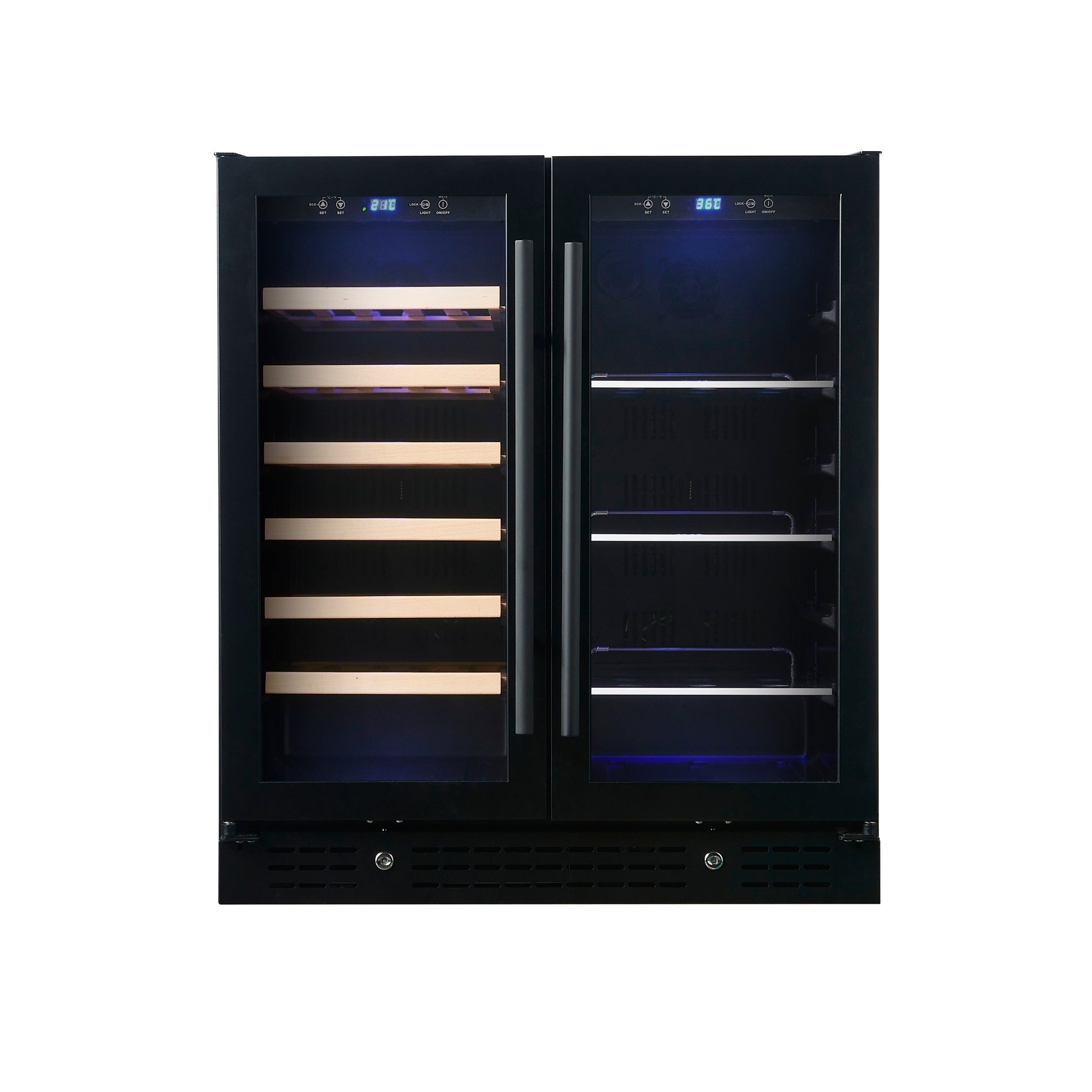

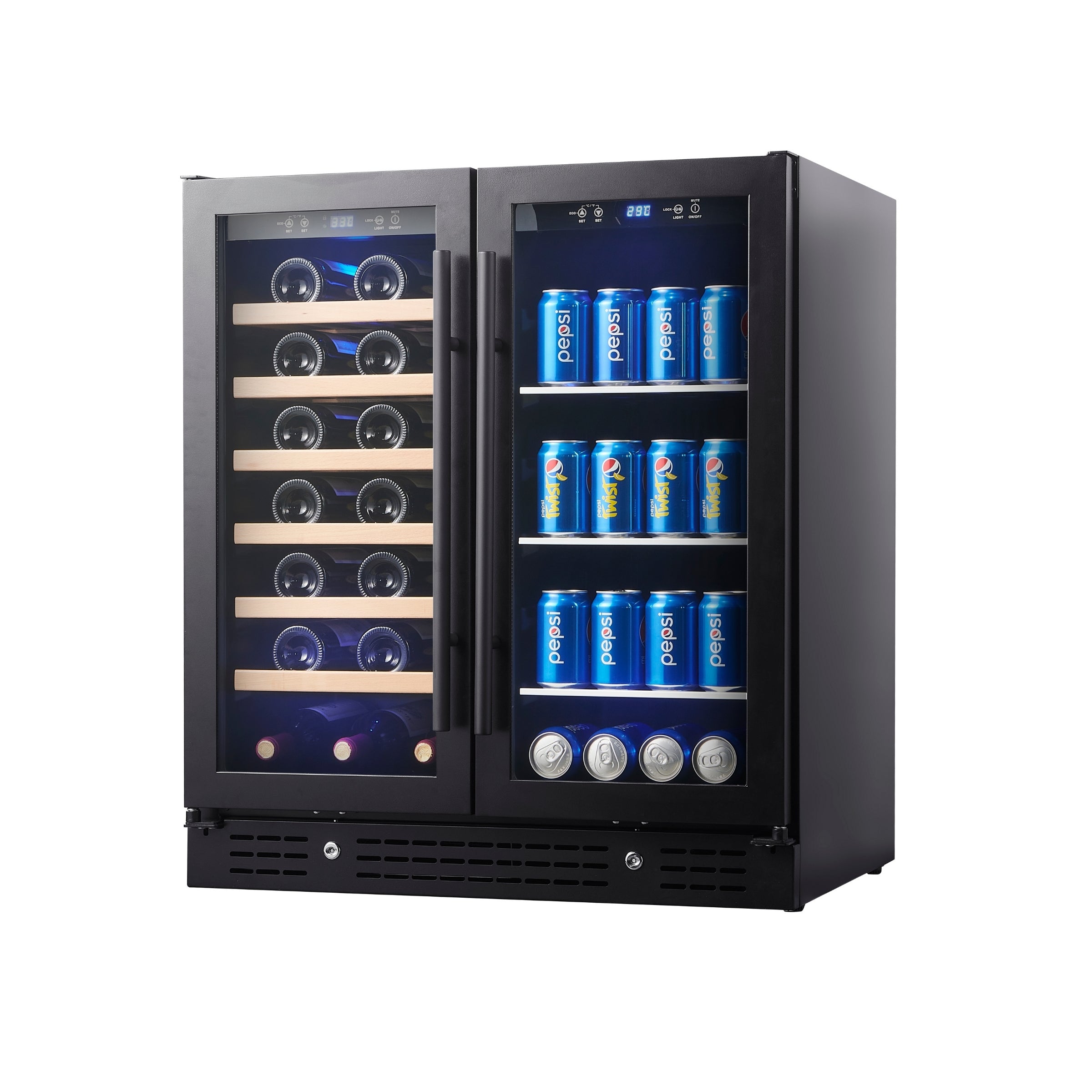

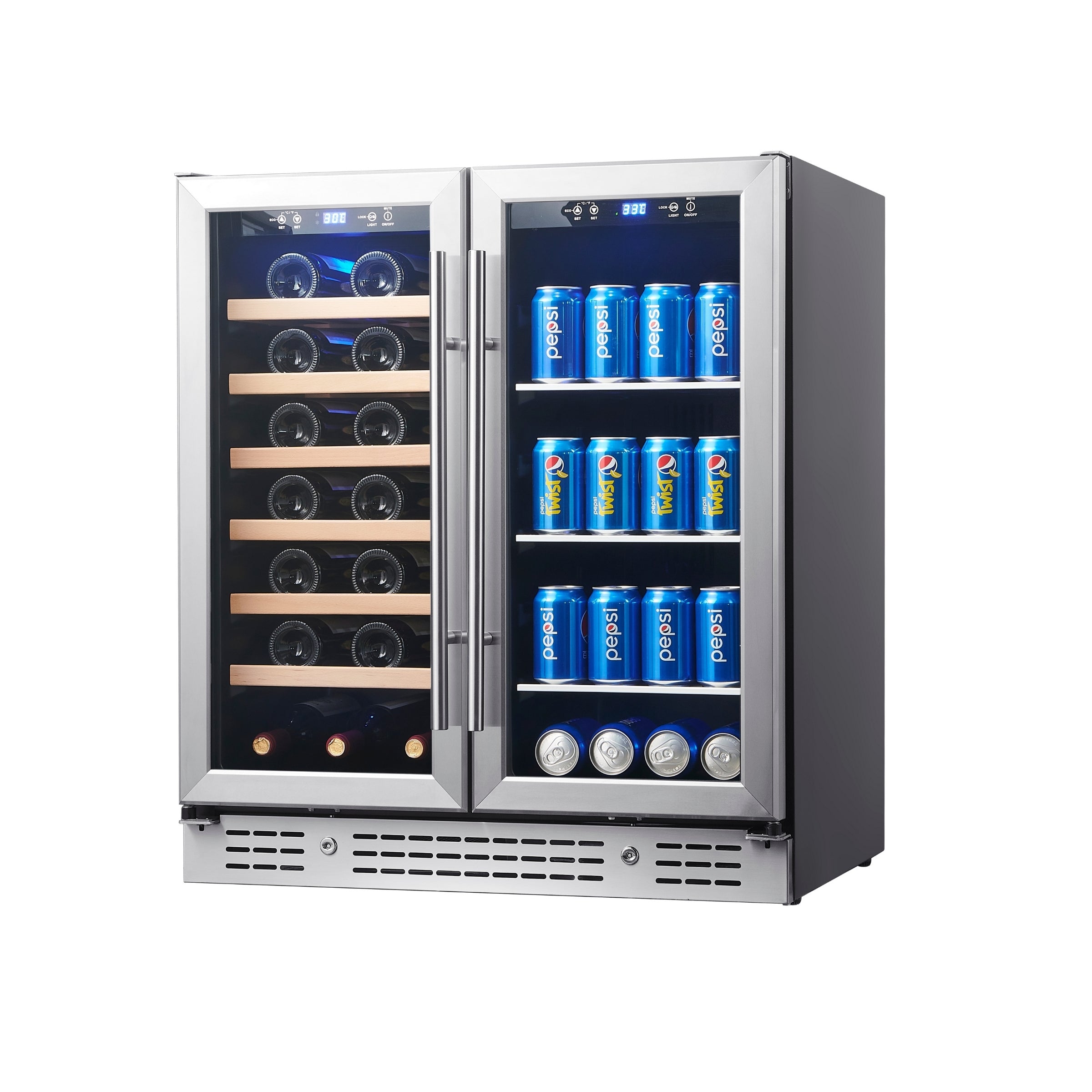

750mm Wide Under bench Low-E Glass Door Wine and Beer Fridge Combo
SIZE: 750W x 570D x 860H mm
Elevate your small kitchen with the KingsBottle 750mm Wide Underbench Low-E Glass Door Wine and Beer Fridge Combo—a compact gem for Australia’s casual entertainers. Designed to fit snugly under your bench, this front-venting fridge is perfect for apartments or cozy kitchens in Sydney or the Outback. Its dual-zone cooling lets you chill your Margaret River Chardonnay at 8°C and your stubbies at 2°C, with a capacity of 33 bottles (standard 750ml, up to 86mm diameter) and 77 cans (standard 330ml)—ideal for intimate dinners or small gatherings with mates.
This fridge features a quiet compressor that ensures minimal noise, perfect for open-plan living spaces, and reduces energy consumption for efficiency. The Low-E glass door minimizes condensation for a clear view of your drinks, while offering UV protection to preserve their quality. Beechwood shelves for wines and adjustable glass shelves for cans pull out smoothly, making access a breeze, and fan-circulated cooling ensures even temperatures across both zones. Whether built-in or freestanding, this combo fridge offers seamless cooling with a modern stainless steel finish—your drinks are always ready to enjoy.
Specifications
General Information
- Dimensions: 750W x 570D x 850H mm (616mm depth including handle)

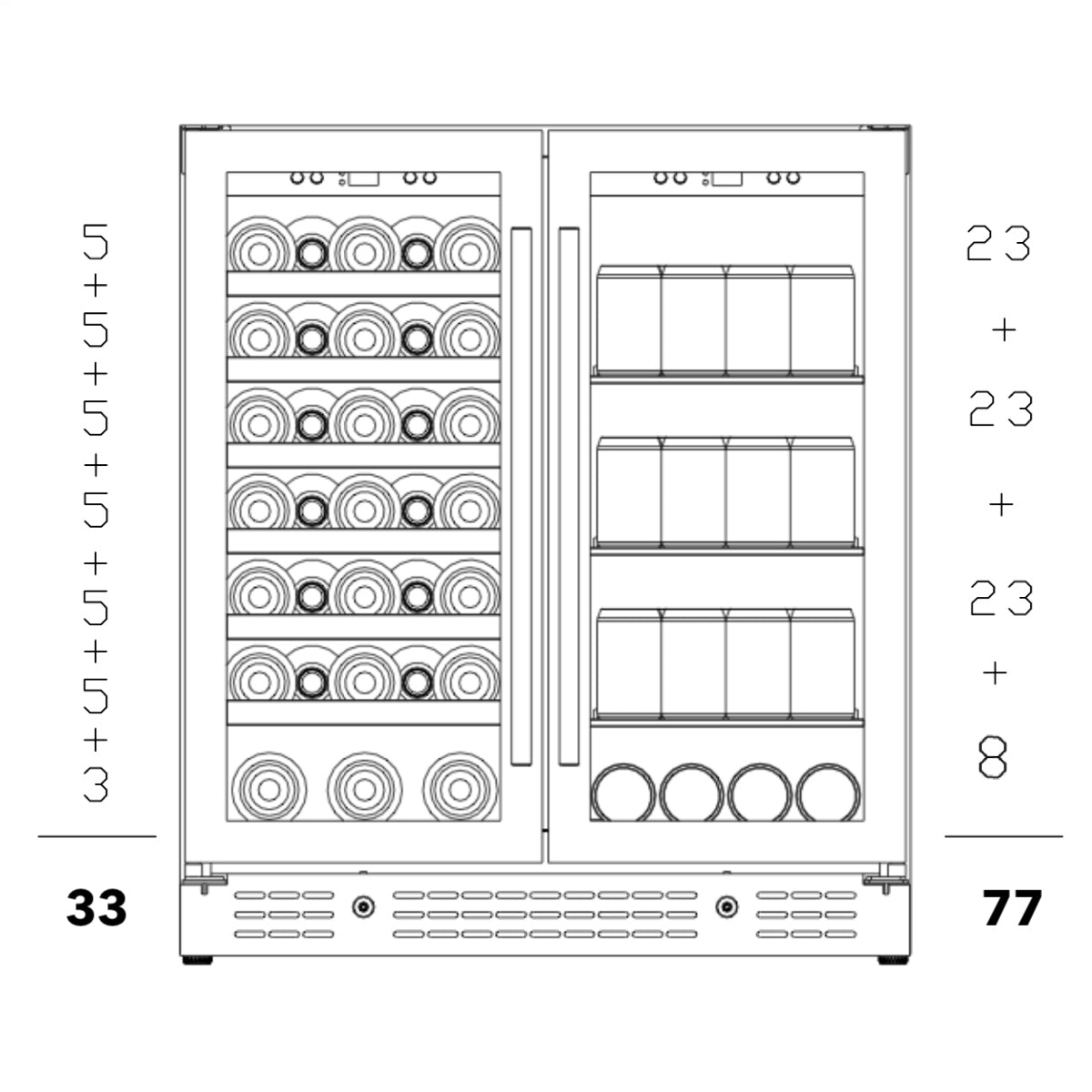

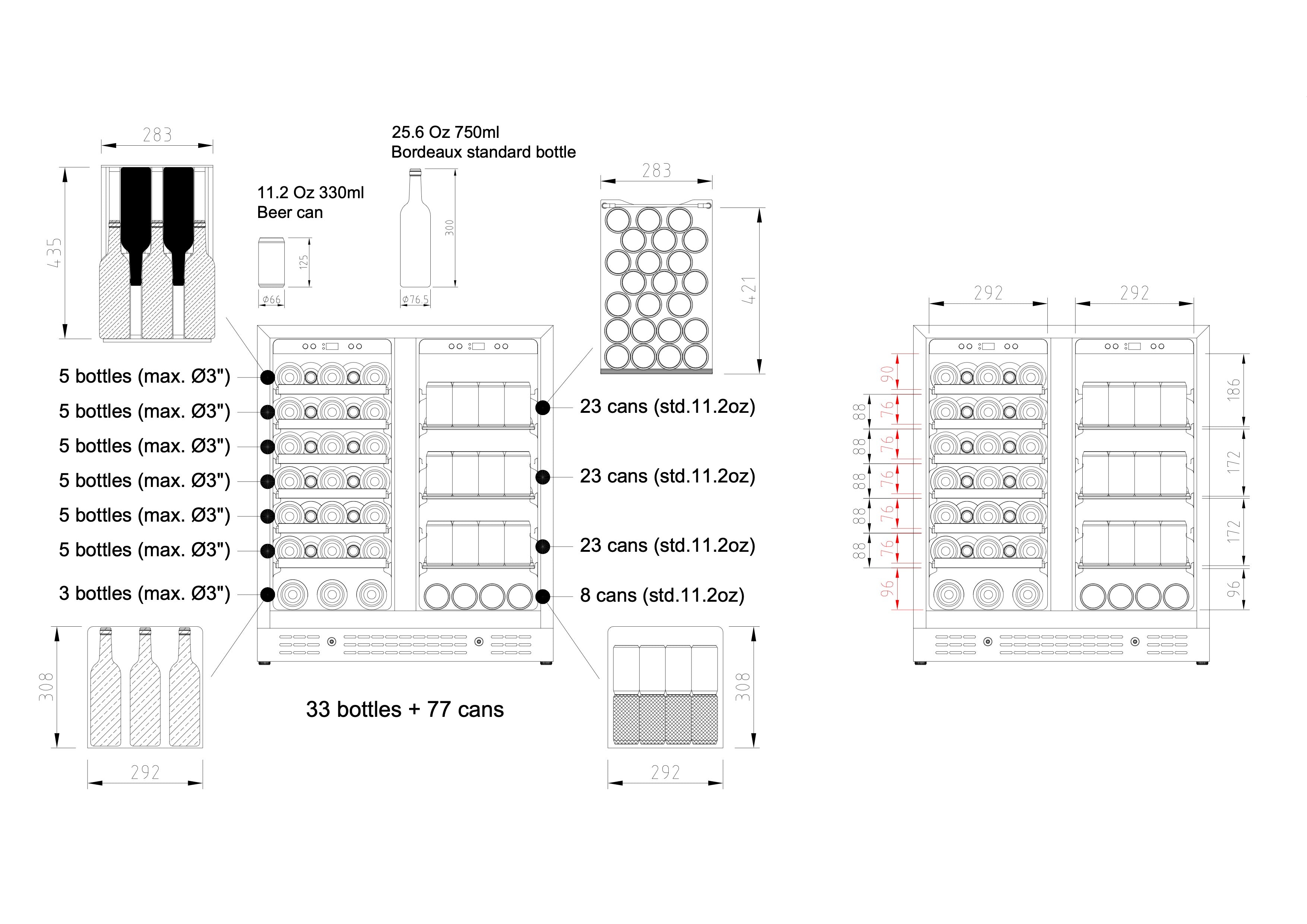

- Capacity: 33 bottles (standard 750ml, up to 86mm diameter), 77 cans (standard 330ml)
- Net Weight: 60 kg

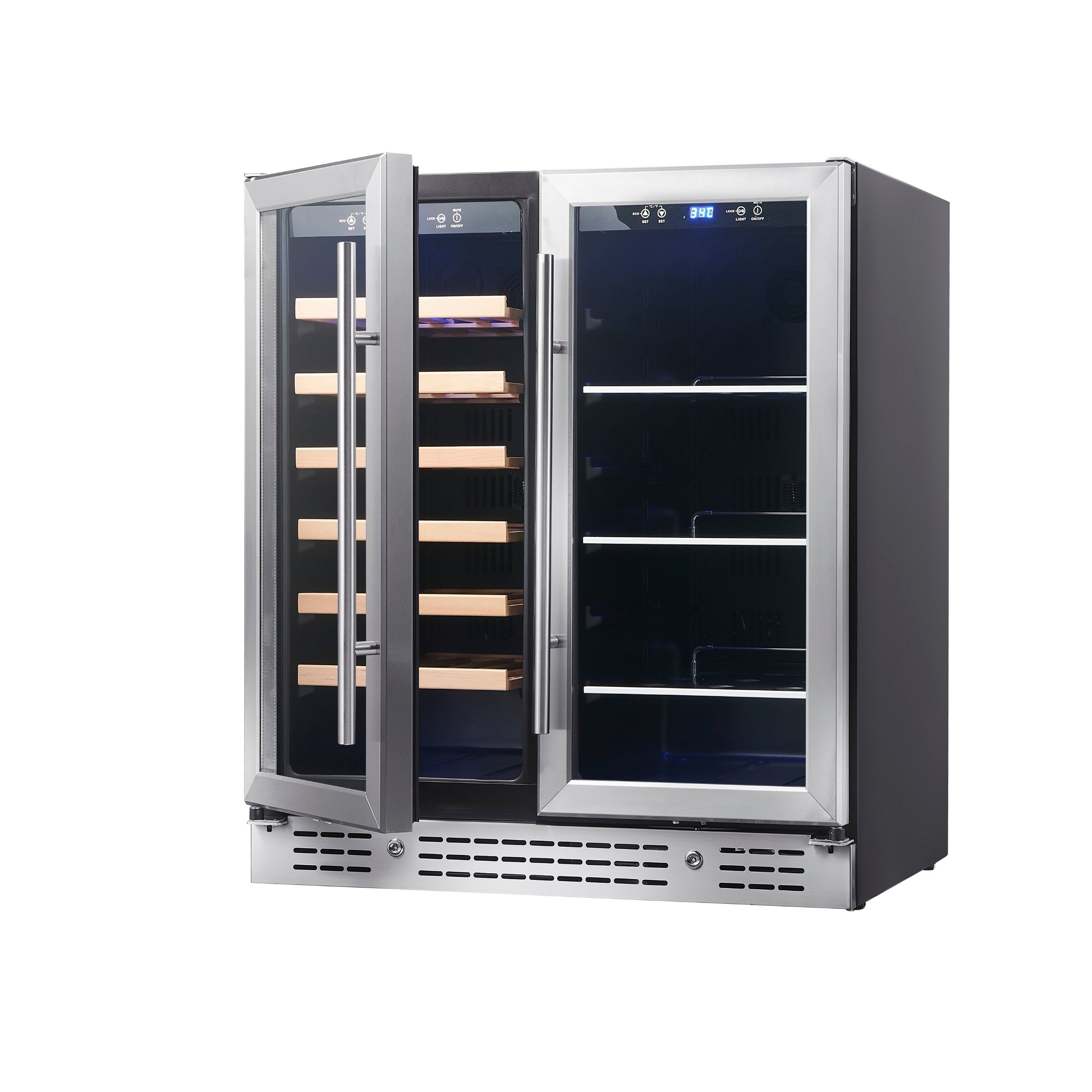

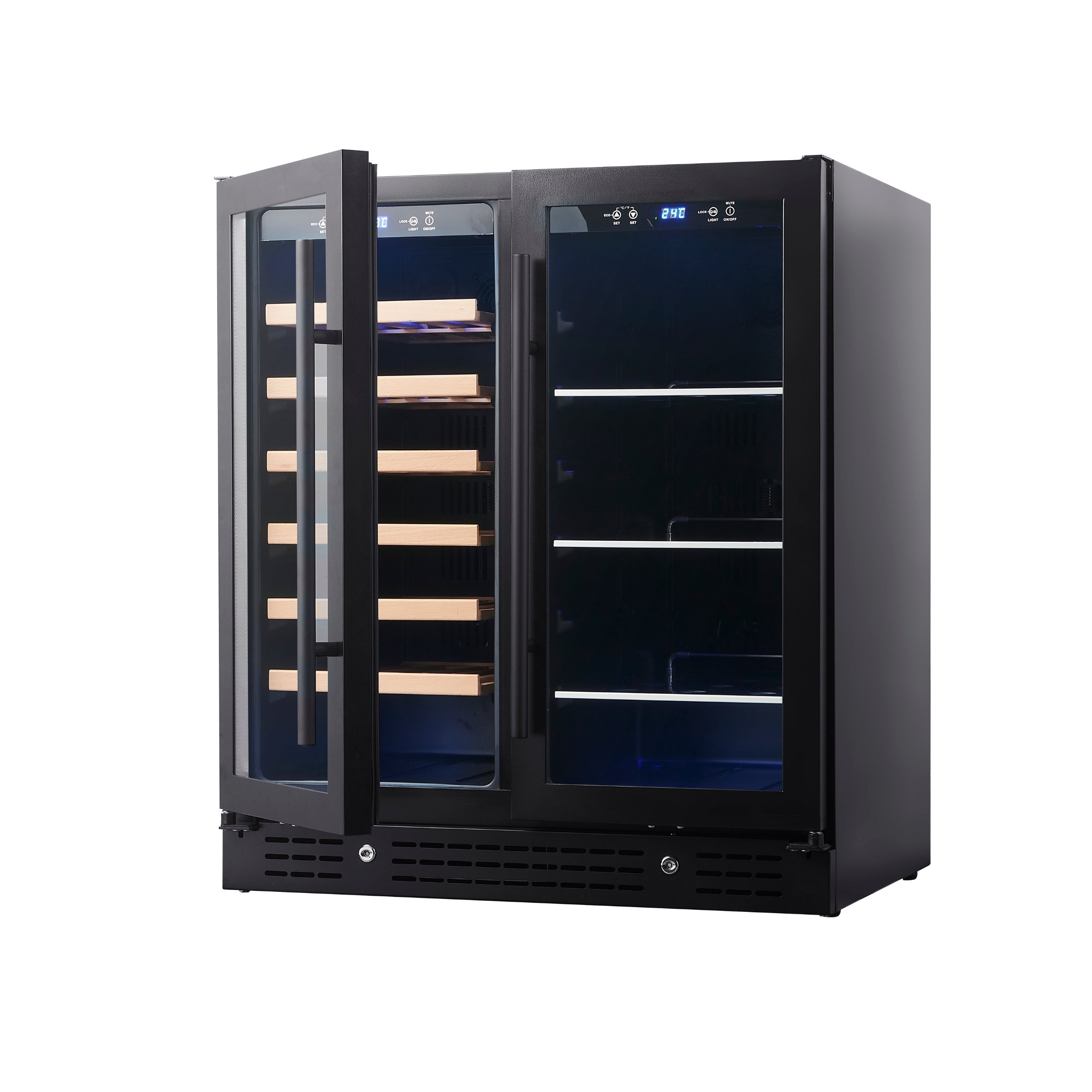

- Door: Reversible tempered safety glass doors with stainless steel frame
Key Features
Compressor: Embraco
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves:
Beer Side: Adjustable glass shelves;
Wine Side: Beechwood shelves
Temperature Range:
Beer Side: 2-20°C
Wine Side: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 570 kWh/Year (ISO23953-2)
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KBU165BW KBU190BW

Quiet Compressor
Runs on a top-shelf compressor that’s whisper-quiet and vibration-free, keeping your drinks chilled without a peep.

Low-E Glass
Saves power and stops condensation on the door;
Acts like a sneaky insulating wall to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, ramping up energy savings and cooling efficiency.

Fan Circulated Air-Cooling System
Keeps the temp consistent throughout the cabinet;
Balances humidity to protect what’s inside.

Activated Carbon Filter
Traps air impurities like a champ;
Keeps the cabinet air crisp and odour-free.

LED Display Digital Touchpad Control
Dead-simple controls to use;
Shows clear, bang-on settings every time.

45mm Thick C-Pantane Foam
Chunky foam boosts cooling and keeps energy costs down.
Dimensions & Diagrams

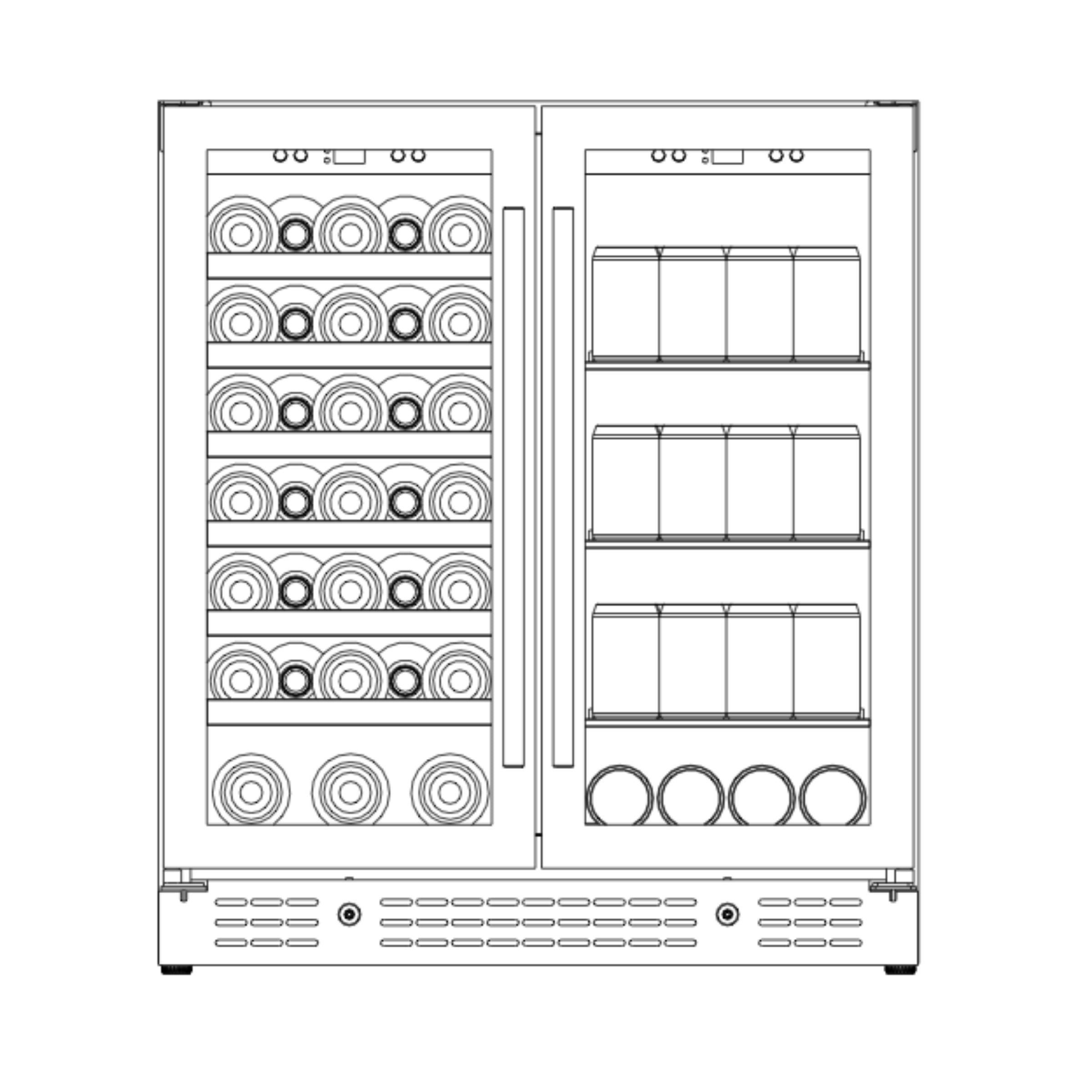

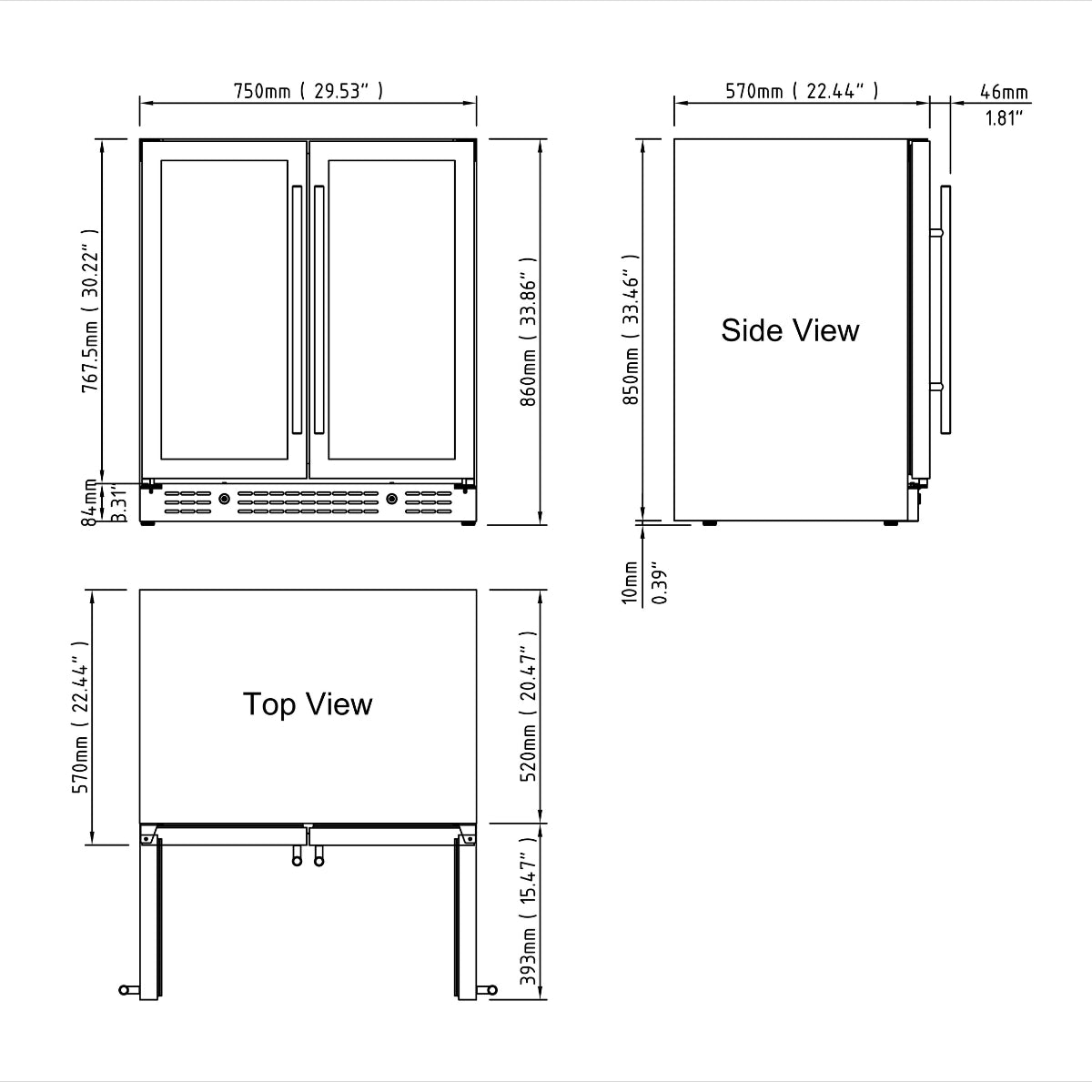

Technical Dimensions

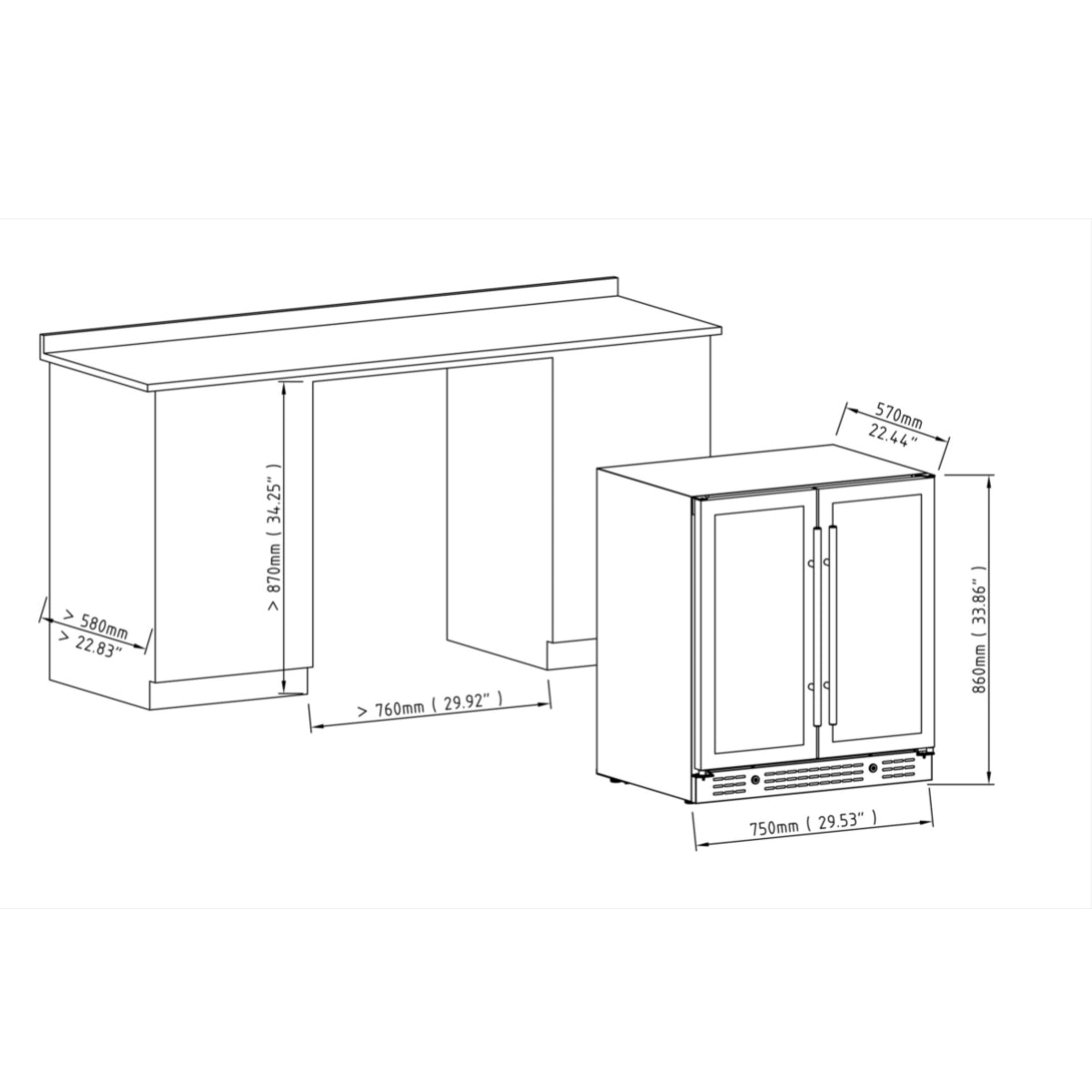

Installation Diagrams

User Manual For KB165 | KB190
