900mm Wide Under Bench Low-E Glass Door Wine and Beer Fridge Combo
SIZE: 900W x 595D x 850H mm
Impress your guests with the KingsBottle 900mm Wide Under Bench Low-E Glass Door Wine and Beer Fridge Combo—a stylish addition to Australia’s small to medium-sized homes. Designed to fit neatly under your bench, this front-venting fridge is perfect for kitchens, home bars, or dining areas from Melbourne to the Outback. Its dual-zone cooling keeps your Hunter Valley Semillon at 8°C and your beers at 2°C, with a capacity of 34 bottles (standard 750ml, up to 86mm diameter) and 98 cans (standard 330ml)—great for casual gatherings or intimate dinner parties with mates.
This fridge features a quiet compressor that ensures minimal noise, perfect for open-plan living spaces, and reduces energy consumption for efficiency. The Low-E glass door minimizes condensation for a clear view of your drinks, while offering UV protection to preserve their quality. Beechwood shelves for wines and adjustable glass shelves for cans pull out smoothly, and fan-circulated cooling ensures even temperatures across both zones. Whether built-in or freestanding, this combo fridge offers seamless cooling with a sleek stainless steel finish—your drinks are always party-ready.
Specifications
General Information
- Dimensions: 900W x 595D x 850H mm (641D mm including handle)

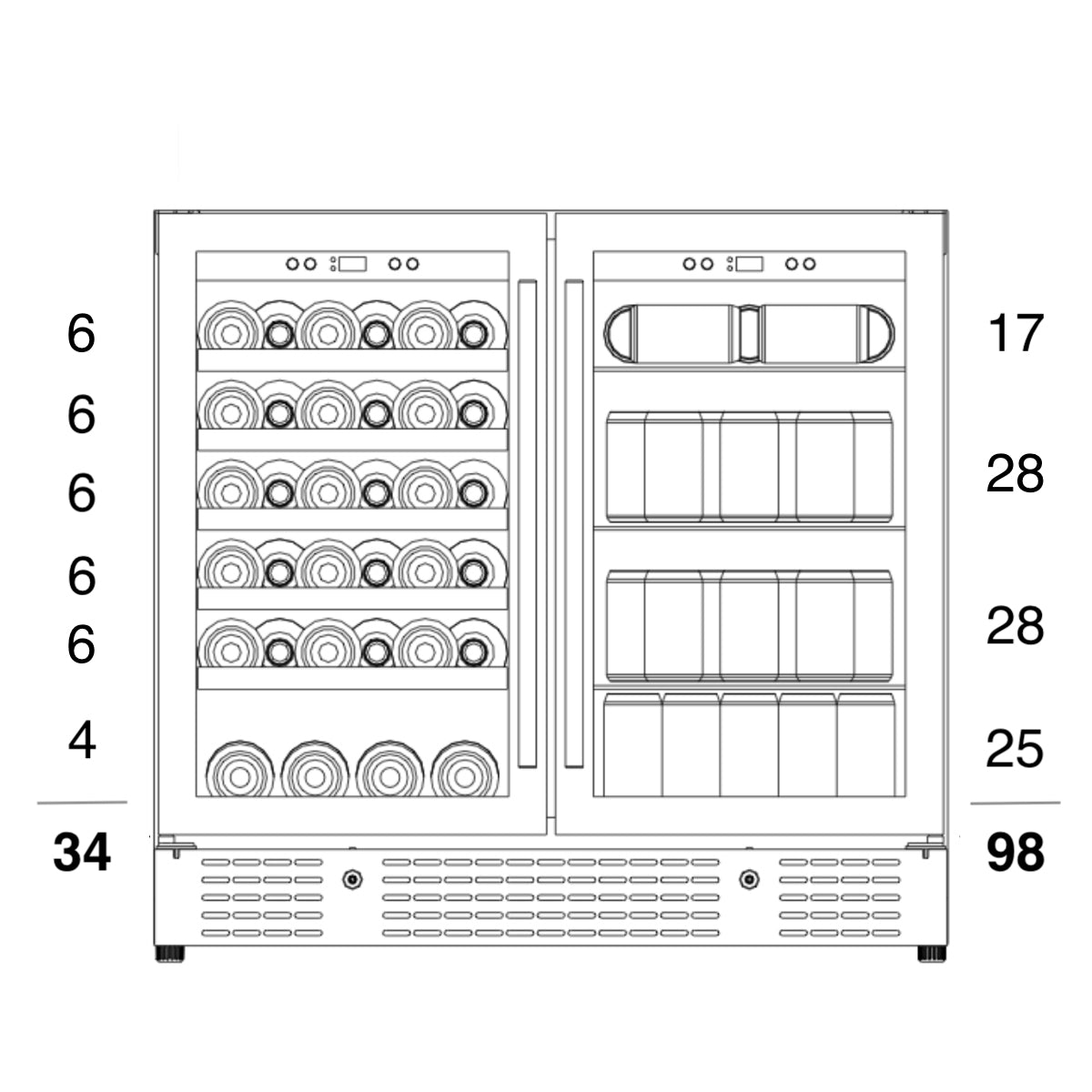

- Capacity: 34 bottles (standard 750ml, up to 86mm diameter), 98 cans (standard 330ml)
- Net Weight: 69 kg
- Door: Reversible tempered safety glass doors with stainless steel frame
Key Features
Compressor: Embraco
Glass: Low-E, dual-layer tempered for UV protection and less condensation
Cooling System: Fan-circulated for uniform temperature
Shelves:
Beer Side: Adjustable glass shelves;
Wine Side: Beechwood shelves
Temperature Range:
Beer Side: 2-20°C
Wine Side: 2-20°C
Control: Digital touchpad with LED display
Electrical
Voltage: 220-240V
Frequency: 50Hz
Power Consumption: 595 kWh/Year (ISO23953-2)
Plug: Australian standard 3-pin
Installation Requirements
Built-in Clearance: This built-in fridge operates without extra clearance, but for simple installation, removal, and to protect the power cords, allow 20mm of space on each side, behind, and above.
Ventilation: Front-venting design
Technical Features | KBU165BW KBU190BW

Quiet Compressor
Runs on a top-shelf compressor that’s whisper-quiet and vibration-free, keeping your drinks chilled without a peep.

Low-E Glass
Saves power and stops condensation on the door;
Acts like a sneaky insulating wall to keep the cold in.
Note: Low-E Glass has a smart coating that cuts heat transfer and condensation, ramping up energy savings and cooling efficiency.

Fan Circulated Air-Cooling System
Keeps the temp consistent throughout the cabinet;
Balances humidity to protect what’s inside.

Activated Carbon Filter
Traps air impurities like a champ;
Keeps the cabinet air crisp and odour-free.

LED Display Digital Touchpad Control
Dead-simple controls to use;
Shows clear, bang-on settings every time.

45mm Thick C-Pantane Foam
Chunky foam boosts cooling and keeps energy costs down.
Dimensions & Diagrams

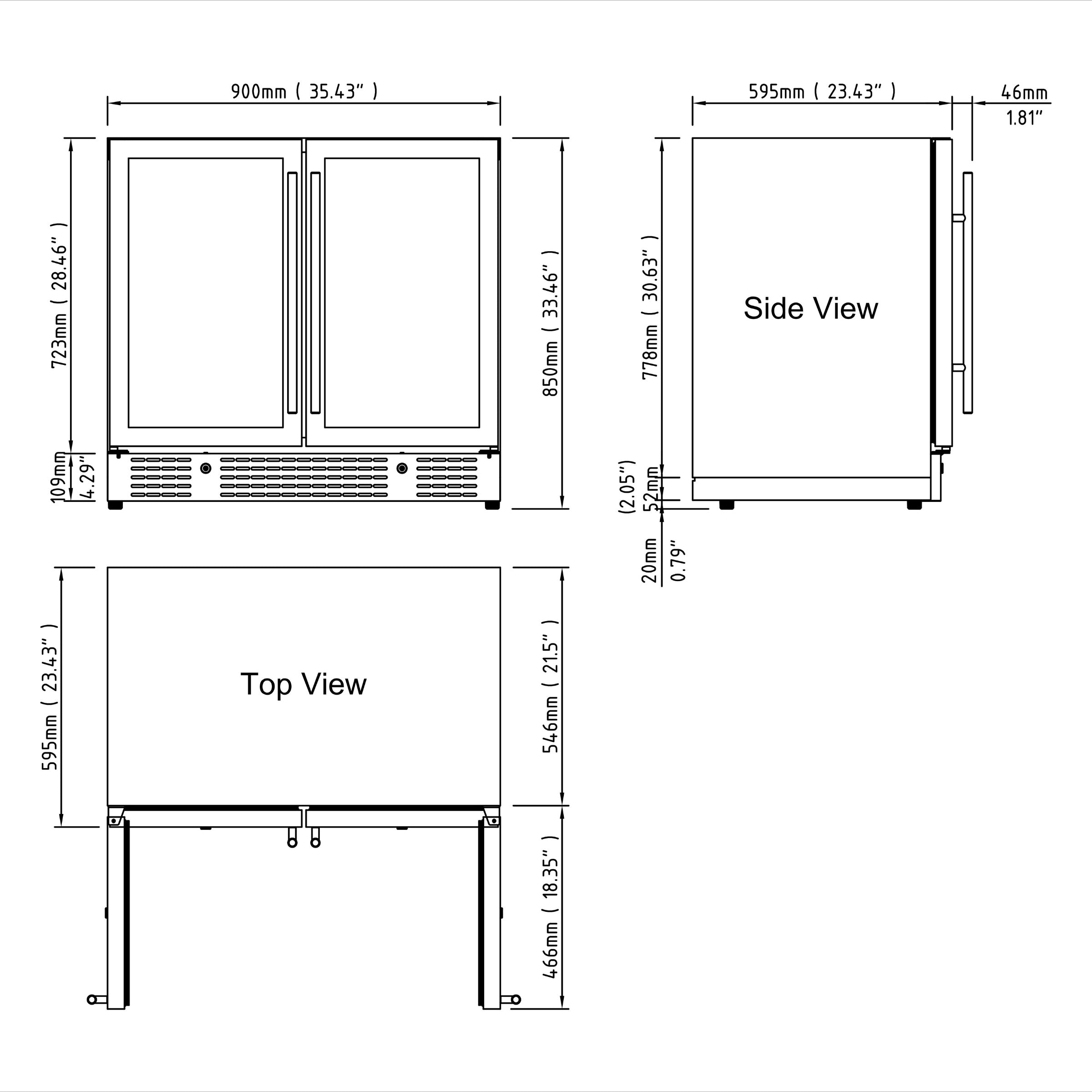

Technical Dimensions

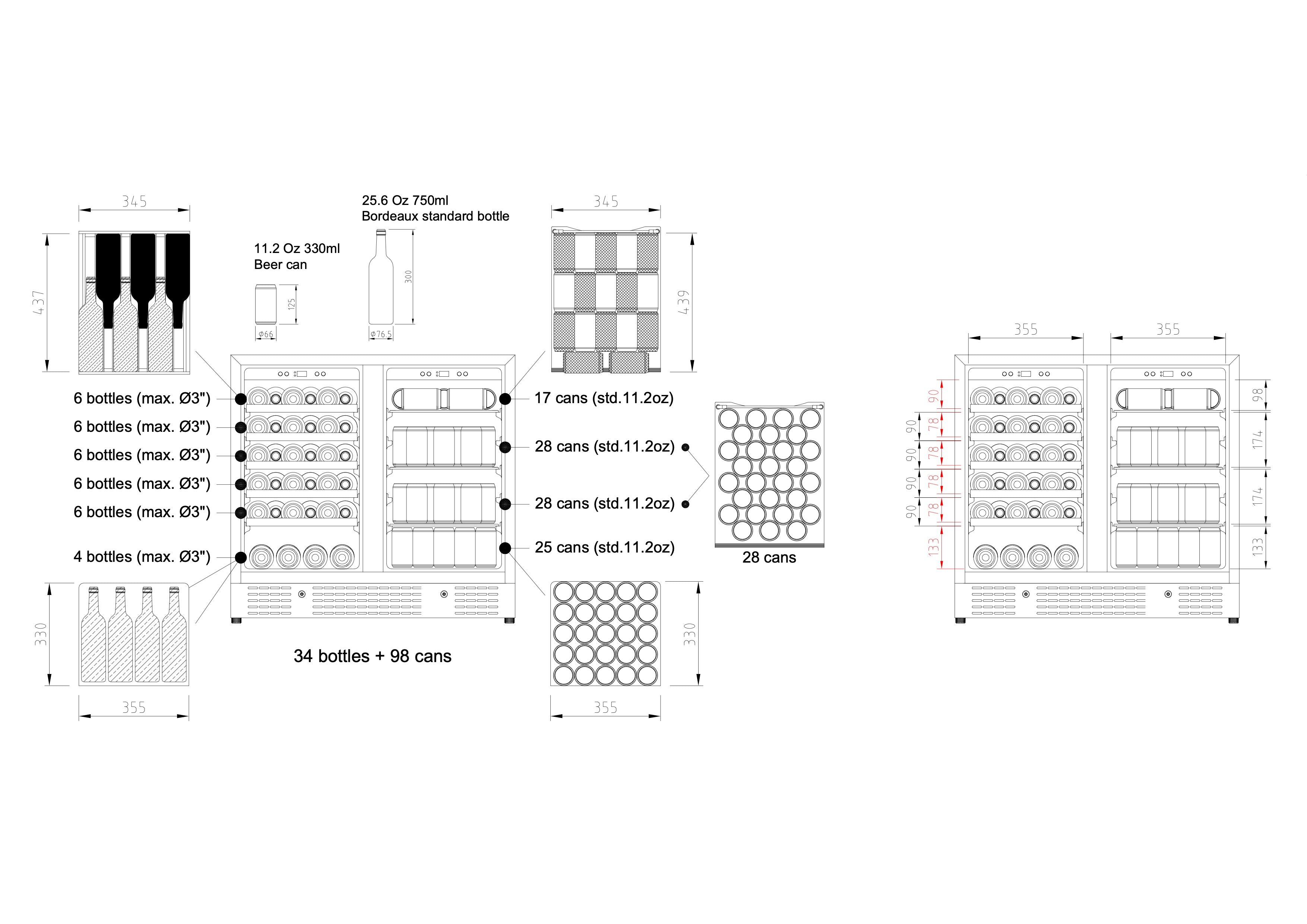

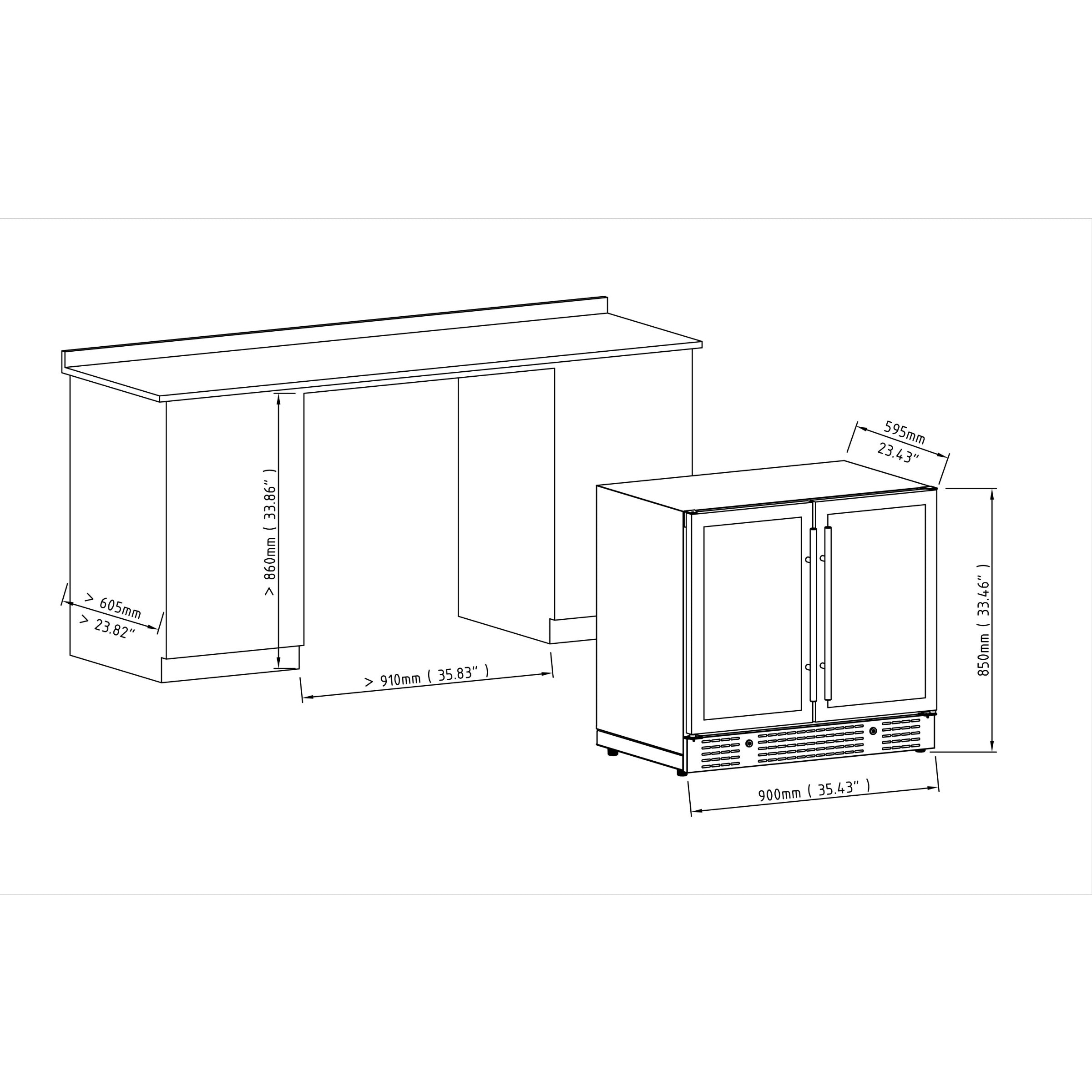

Installation Diagrams

User Manual For KB165 | KB190
