CAREL Temperature Controller With Light Switch

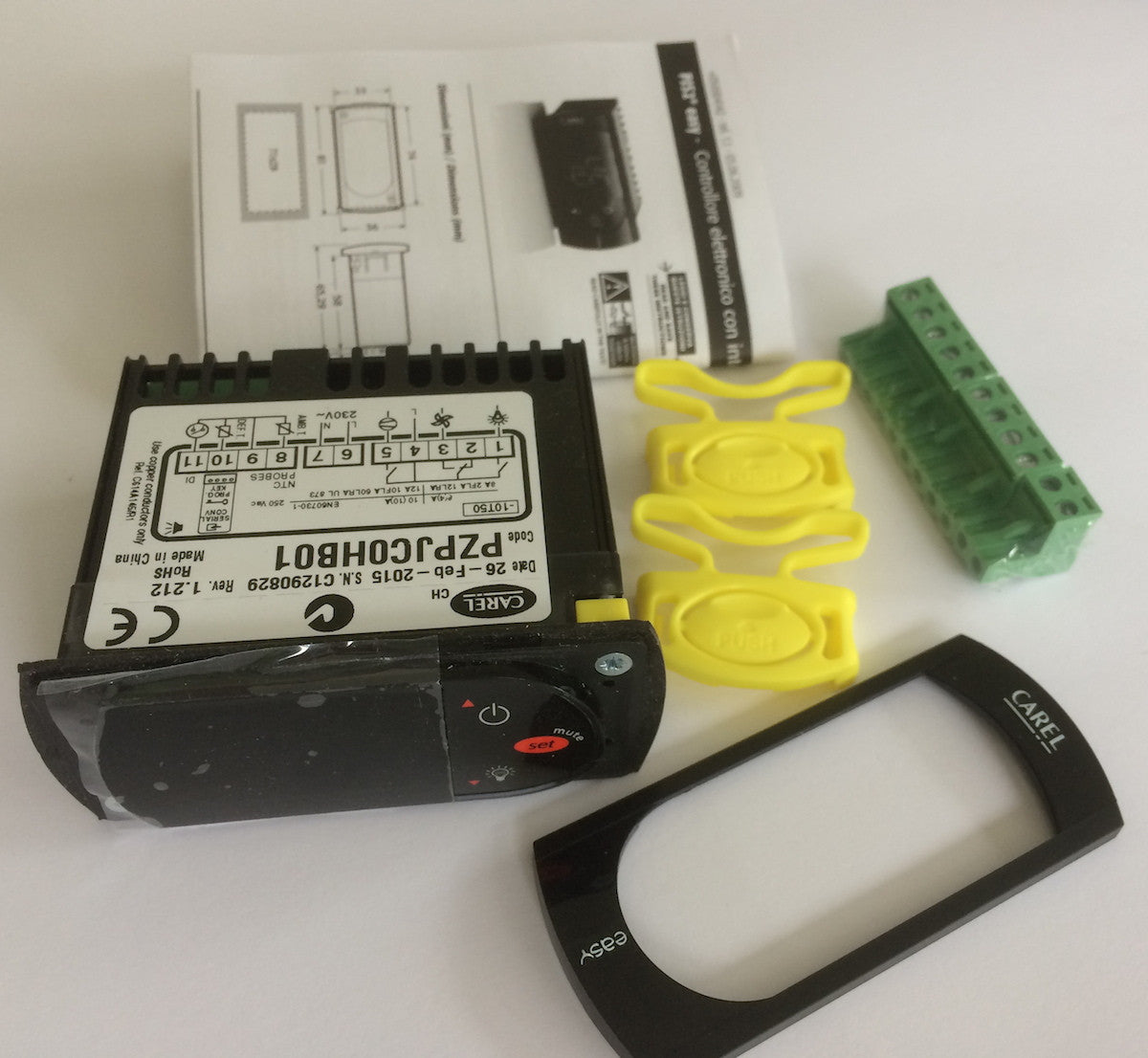

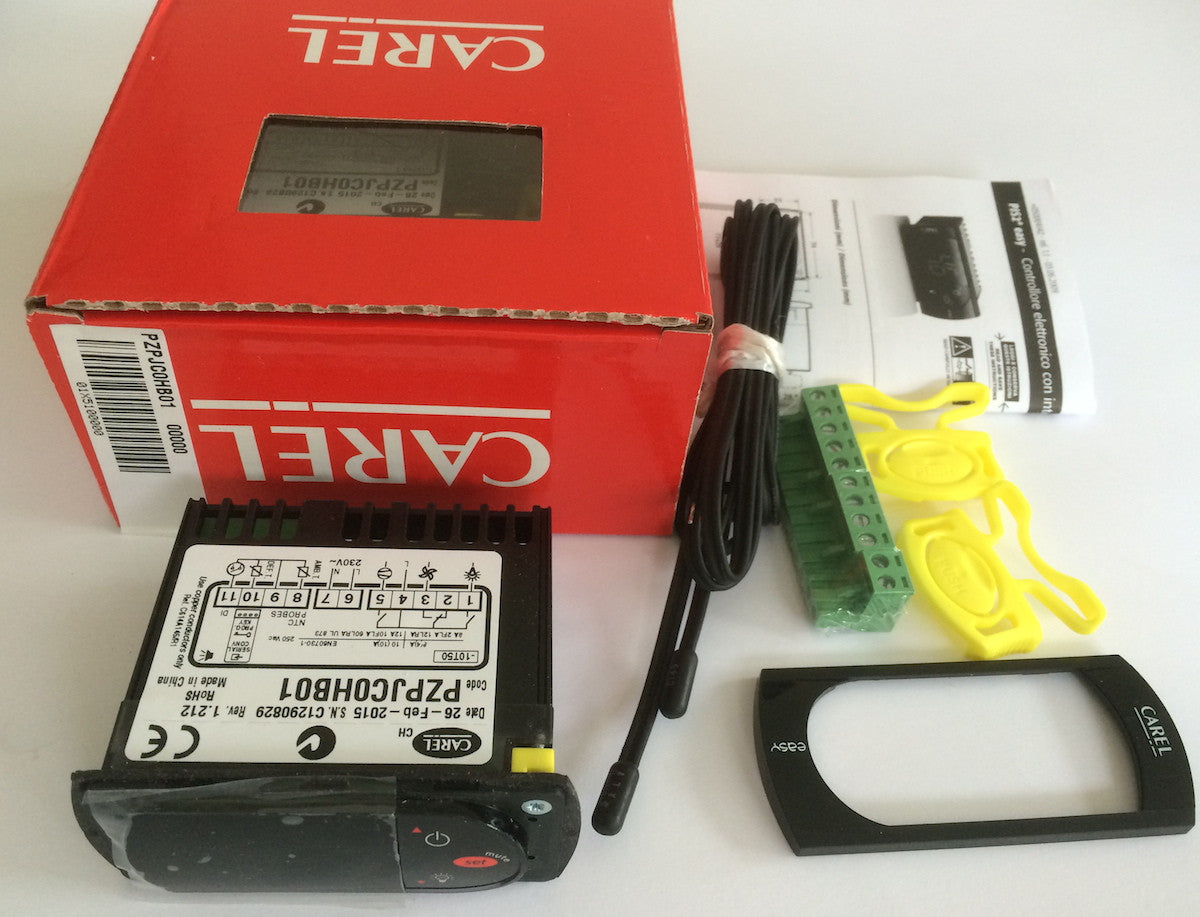

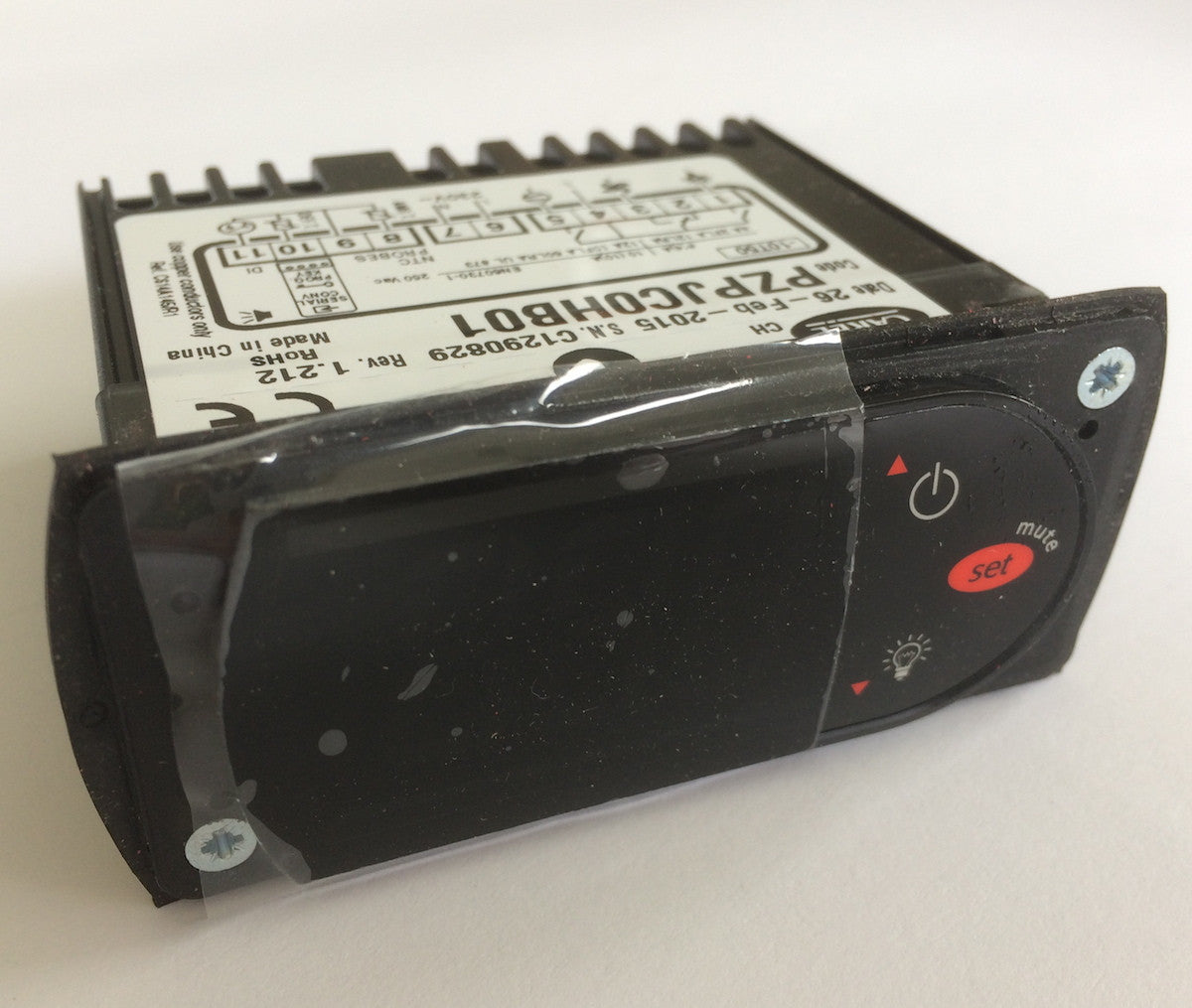

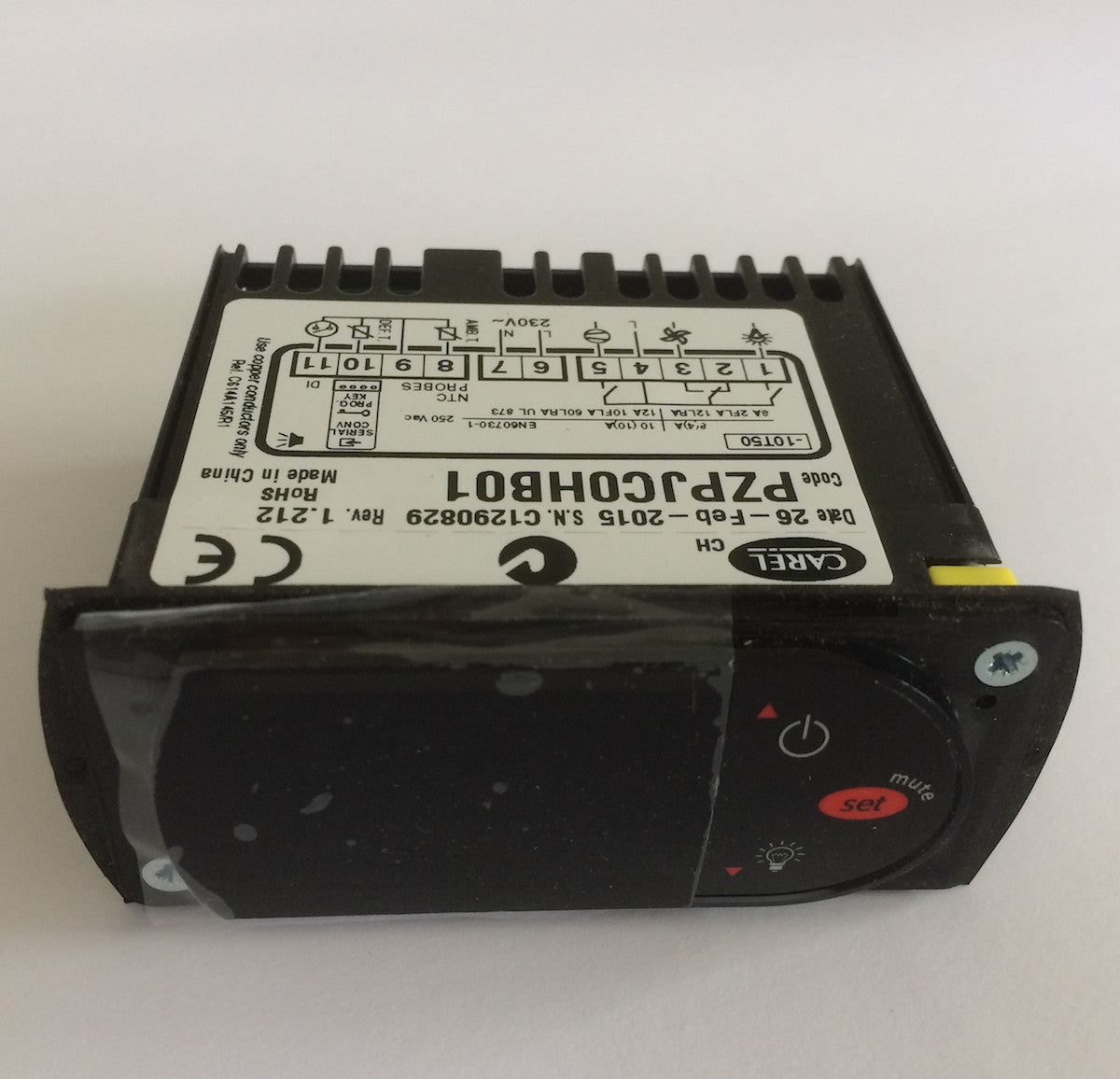

PZPJC0HB01 (PJEZC*) Carel Temperature Controller represent the electronic microprocessor controllers with Blue LED display and light switch developed for the management of low temperature ventilated refrigerating units (wine fridge, beer fridge, beverage refrigerator).

Power Suppy: 230 Vac +10/-15% 50/60 Hz; 12 Vac +10/-15% 50/60 Hz; 12 Vdc +10/-20%

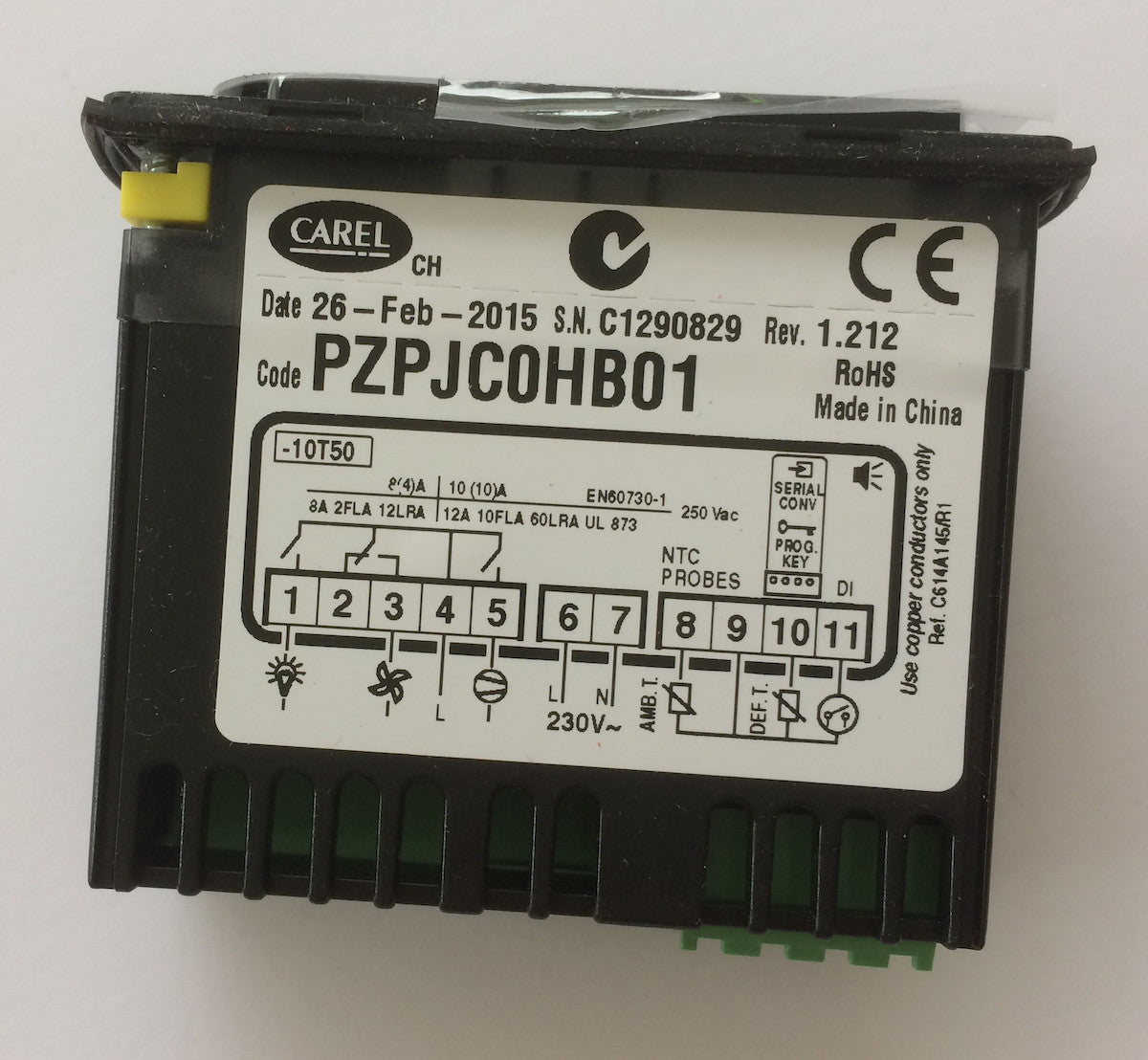

Input:

• Regulation probe (air return temperature)
• Evaporator probe (evaporator temperature)
• Door switch

Output:

• 2HP Compressor control relay (COMPR)
• 8A Evaporator Fan control relay (FAN)
• 8A Light control relay
• Buzzer
• Display + icons

Operation mode:

• Standard Mode (saved in eeprom in order to resume previous operation if power-off occurs)
• Energy Saving Mode (saved in eeprom in order to resume previous operation if power-off occurs)

Specifications:

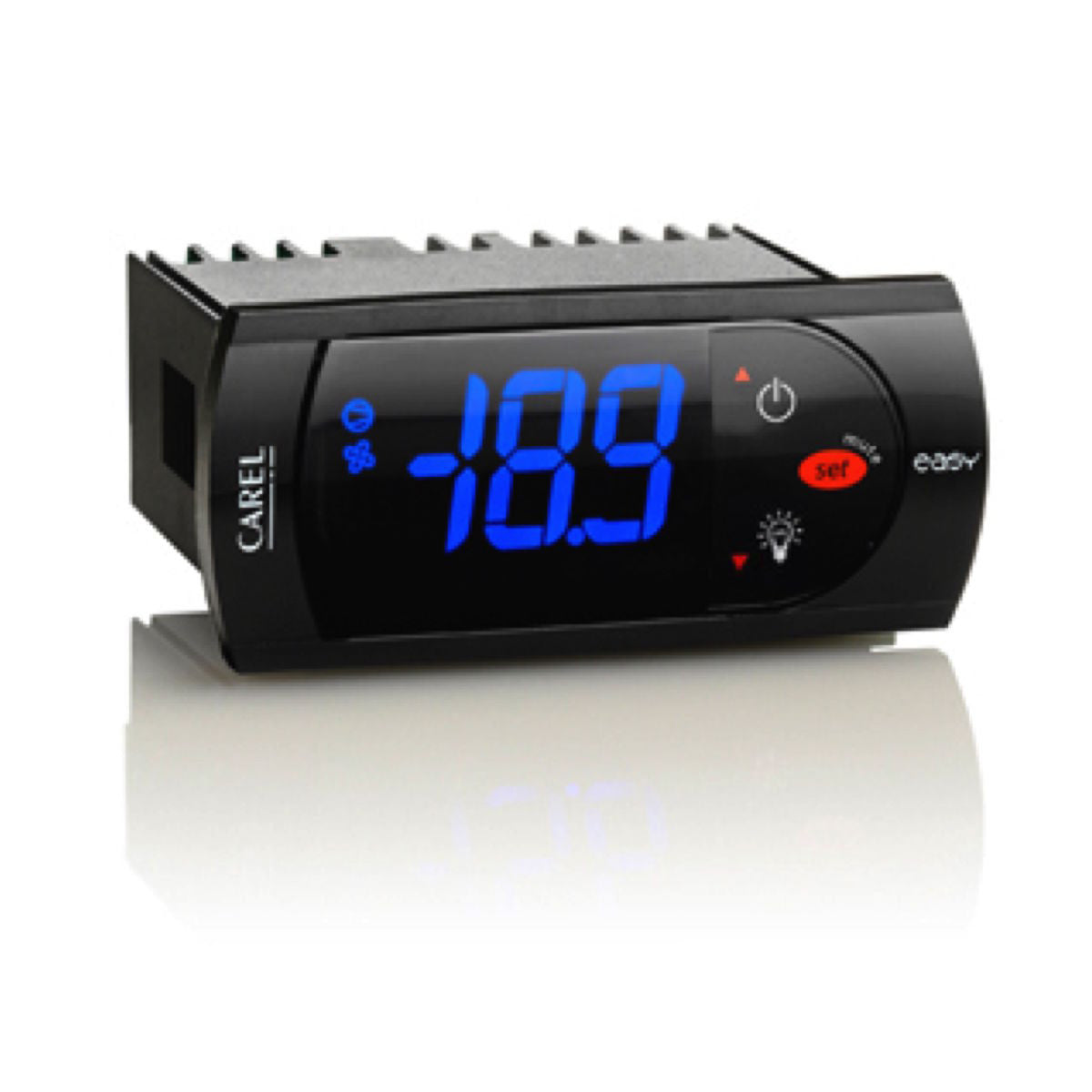

• Blue LED Display
• Temperature Max: 150C
• Temperature Min: -50C
• External Depth: 38mm
• External Length / Height: 36mm
• External Width: 81mm
• For Use With: NTC Thermistor
• IP / NEMA Rating: IP65
• Mounting Type: Panel
• Output Type: Relay
• Panel Cut-out Size: 29 x 71mm

Disclaimer:

• This Carel controller is for replacement on KingsBottle refrigerators only. We do not recommend you to use this part for repair of other brand refrigerators, we can not guarantee the dimensions fits and the program works properly for other brand refrigerators.
• We don't accept returns and refund on this item.

USER MANUAL DOWNLOAD
